Description

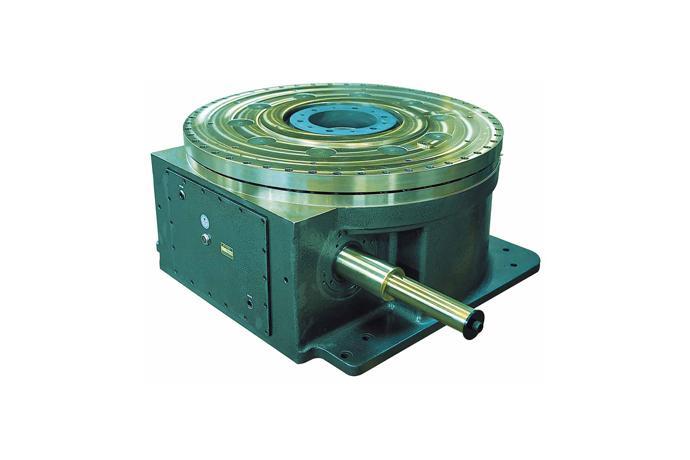

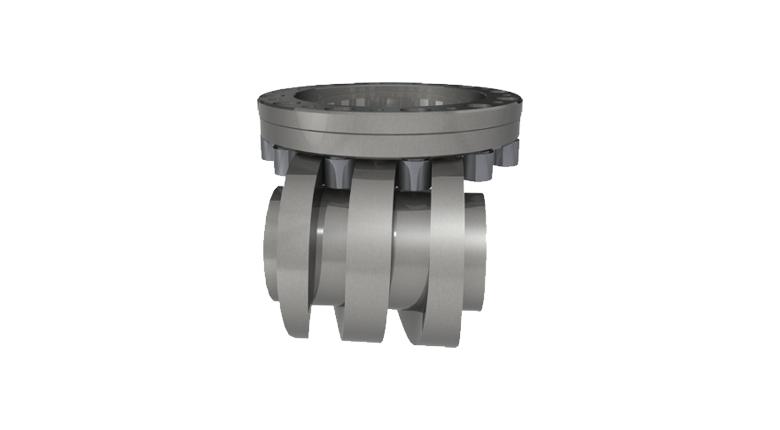

This CHD index unit suitable for large scaled equipment can achieve the required high capacity and high accuracy of division by adopting Cylinder Cam and can run as a large table as 10m’s diameter with its wide surface of output turret.

Also the center-thru output shaft accommodates cabling and piping while enabling lower profile and much higher torque than common standard type. The body with oil box suitable for heavy load does not require to change oil for a long time.

Remarks

1. Robust design
Adopted one body design for housing and ultra large output bearing

2. High Accuracy
± 0.02mm of Repeat accuracy

3. Compact design
Low profiled body, large output turret, center thru hole, no supported device needed.

Product(Size) List

362
