Description

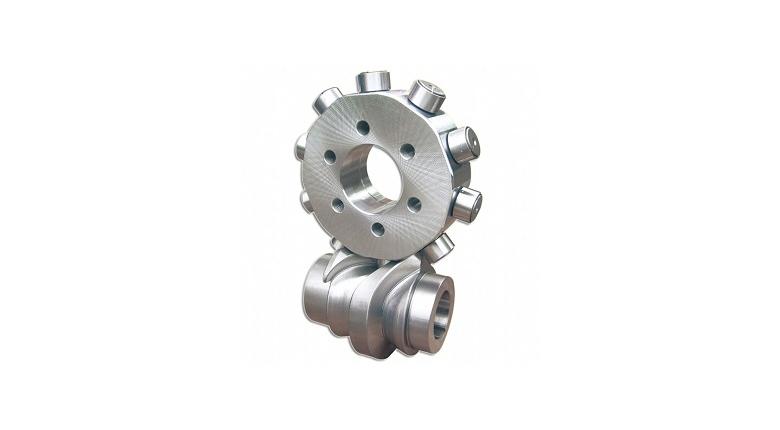

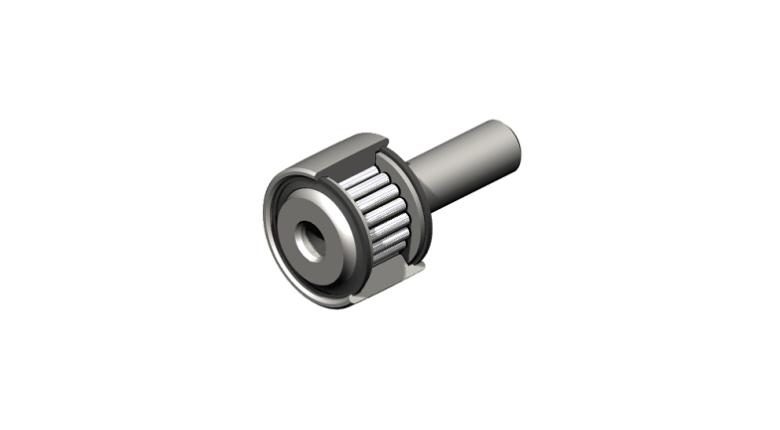

Pats Handler is a Pick & Place unit having dimensional rectilinear motion. Yanghean’s Parts Handler made up of 2 sets of Roller Cam unit provides respective timing for X-Y motion. It can work with the same timing as the work conveyance’s moving speed of the rotary table or conveyer.

Remarks

1. Large Stroke
Max stroke of 300mm × 100mm

2. High Accuracy
Repeatability of ± 0.02mm

3. Compact design
Direct connect of Motor timing Cam to the body.

Product(Size) List
050  060  080
