Description

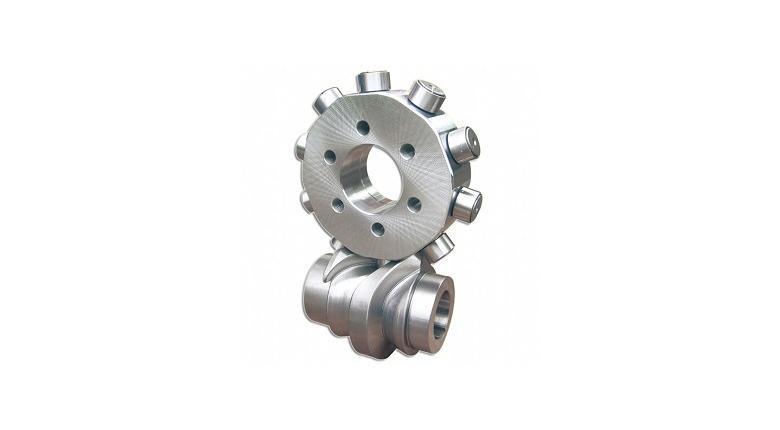

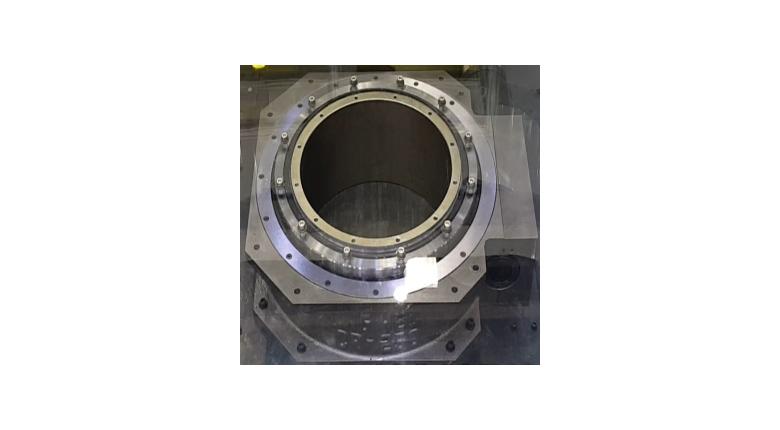

The Inside of output shaft has Ring-typed structure with low profile and much higher torque than common standard type. This structural feature enables large table adopted to the output part. CR series Index Drive allows number of Stops from min 16 to max 48 for 1 dwell and possible to max 96 stops for 2 dwell, which provides high accuracy for multi-division.  It is most suitable for driving of rotary type of automatic assembling machine, machining equipment, and various kinds of automated equipment.

Remarks

1. Wide range of Sizes / Numbers of Stop (Indexing number)
Standardized 5 types of model from middle to large sizes(250-435mm), Optimal for where requires many stops between 16 and 48 stops (1dwell).

2. Compact Structure
Ultra thin and compact structure with low profile.

Product(Size) List

250  300  350  450
