Description

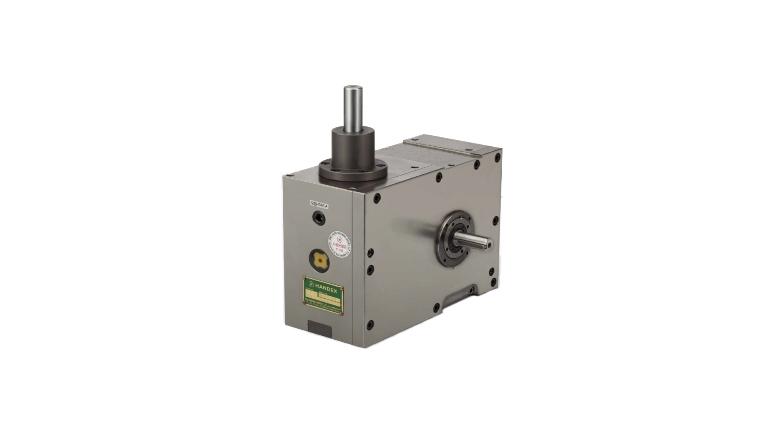

Oscillate handler is Cam type of Pick & Place Unit simultaneously conducting 2 dimensional motions of rotational and lift motions.

It realizes high accuracy, velocity and durability and also plays an important role for conveyance automation of components.

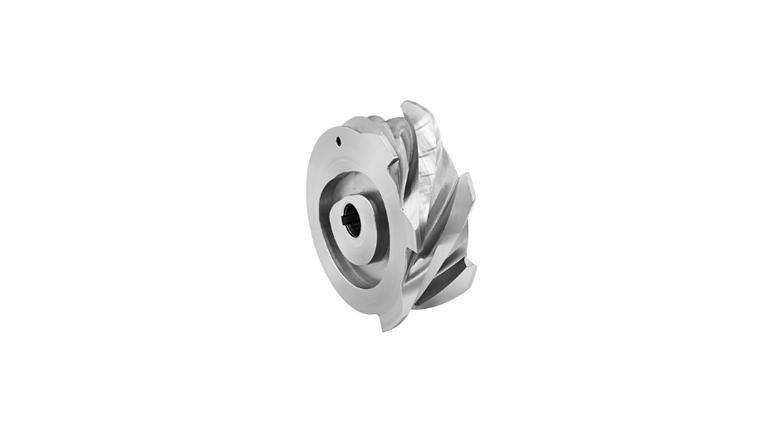

Oscillate handler is a compact Pick & Place Unit which adopts most stable 3D Cam unit in central driving part to optimize the internal structure, provide accurate timing and enables overlap of rotational and lift motions.

Remarks

1. Adopting 3D-Cam tool and having little lost motion makes excellent reproducibility.

2. Straight shaped output shaft accommodates mounting additional devices such as arm and flange.

3. Flexibility of mounting direction and position provides wide range of usage.

Product(Size) List

070  100  120  160  220
