Description

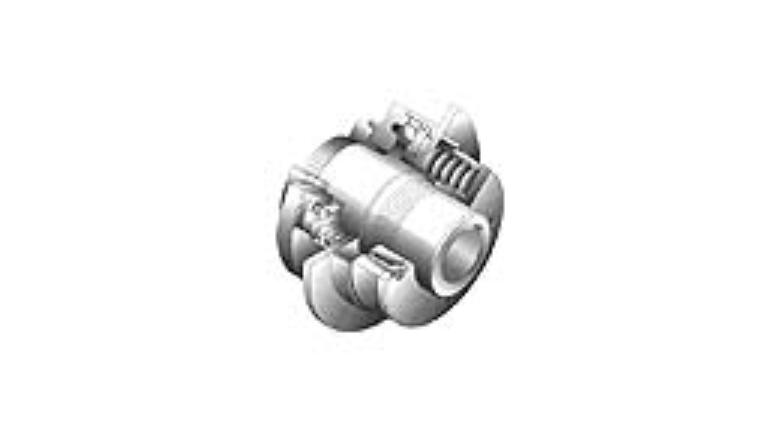

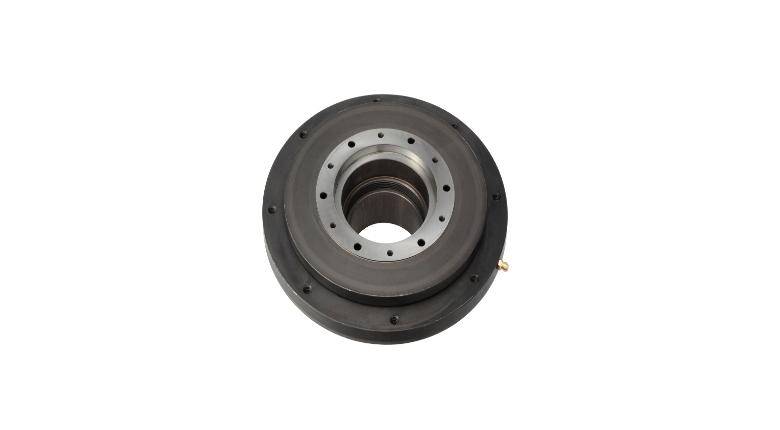

CAM TYPE INDEX DRIVE usually mounted with machinery at the center has structure of high stiffness, indexing accuracy and stable motion characteristic without backlash. For the purpose of protecting this important device, Torque limiter has been developed. Torque limiter is mounted with output shaft to protect the Index Drive safely from overload.

Remarks

Attached to output shaft of CA type Index Drive with bolts, it protects the Indexer from overload.

Product(Size) List

070  090  110  150  190  230
