Description

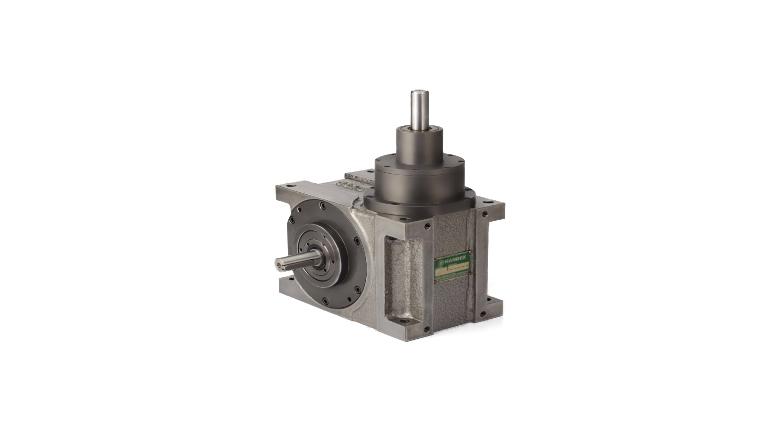

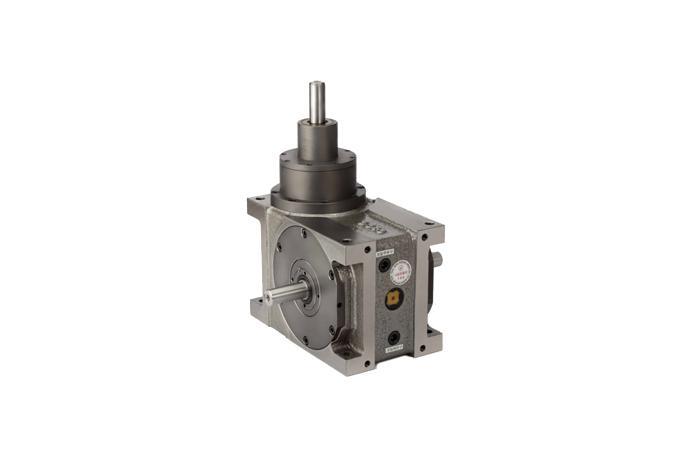

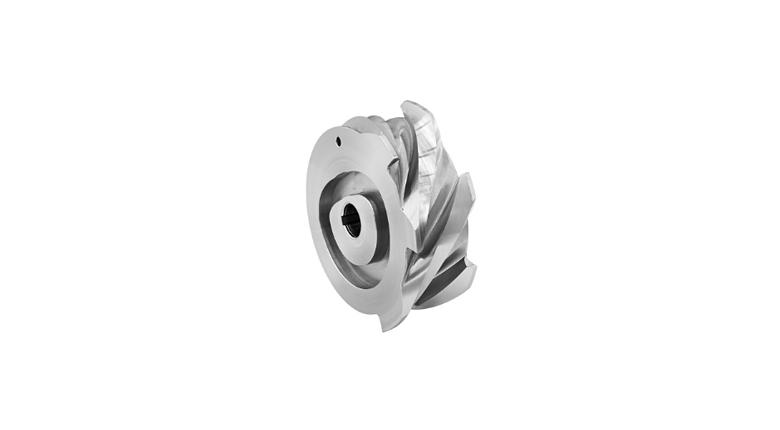

CHT Series is made up of large diameter’s Roller Gear Cam and Groove Cam, and its output shaft rotates simultaneously conducting vertical or horizontal motion while input shaft rotates. This simple unit applicable to easily Pick & Place drive allows to combine more diversity of time table, rotating degree and transferring distance than roller gear index drive by combining of Roller Gear Cam and Groove Cam.

Remarks

1. SIZE
Wide range of Axial distance (shaft-to-shaft) from 80~140mm.

2. Output and Stops
Multi works available such as division of 2~6, Stroke of 5~ 50mm, oscillating of 30°~180°

3. Applications
Applicable to various kinds of universal automated machinery, and enables simply designing for complex equipment.

Product(Size) List

080  110  140  200
