Description

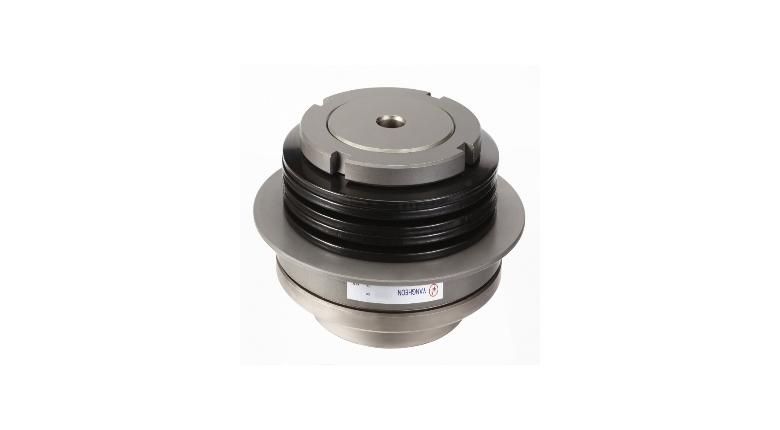

CAM TYPE INDEX DRIVE usually mounted with machinery at the center has structure of high stiffness, indexing accuracy and stable motion characteristic without backlash. For the purpose of protecting this important device, Torque limiter has been developed. Torque limiter is mounted with output shaft to protect the Index Drive safely from overload.

Remarks

It is used when higher torque capacity is required than YT Series, and also can be applied with small size to same setting torque. Can be fixed with power lock or Key like YT Series.

Product(Size) List

11  14  18  4  5  6  7  8
