Description

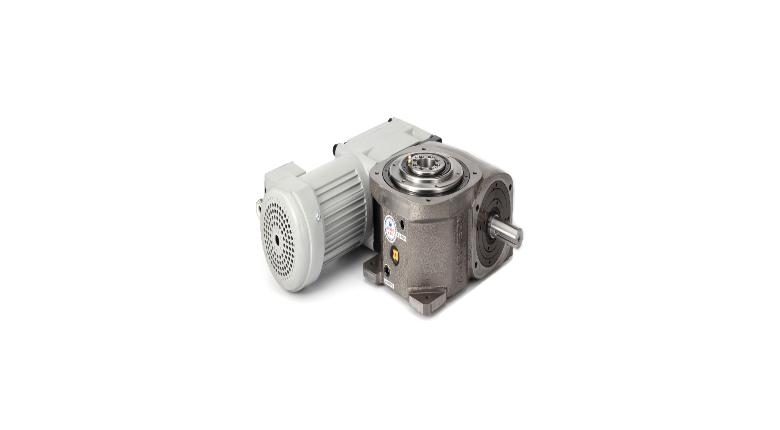

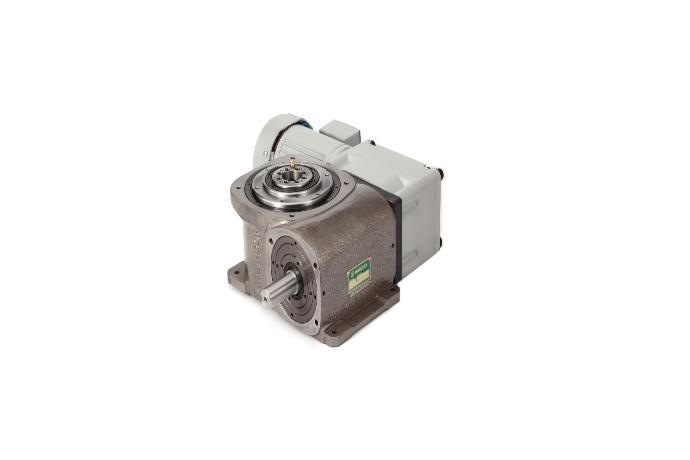

CA series is compact one body type of Index unit with cost efficient Shaft-Mount type Geared Motor mounted to thin Housing. Examining the merits and internal structure of indexing tool with high performance of output resulted in our development of CA which is easy to be handled. It can control movement and stop by inverter control without clutch/brake, also realizes the cost-down by adopting maintenance-free of mechanical parts.

Remarks

1. High capacity / extended lifespan

2. High output value

3. compact apearance

4. wide range of sizes (70~450mm by axial distance (shaft-to-shaft))

5. Universal Mounting (including vertical mounting)

6. Wide range of stops(indexing numbers) available (standard numbers of 2~32 stops / 5.5 & 8.5 also available)

7. High Accuracy (±30sec- 1 Dwell : Standard)

8. Wide output surface provides stable motion

9. Center-thru type of output to accommodate various wiring and air or hydraulic line.

Product(Size) List

070  090  110  150  190  230  330  450
