TNC

TNC

Common Mode Coil

Model

Series

Line Filter


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

The Republic of Korea


Description

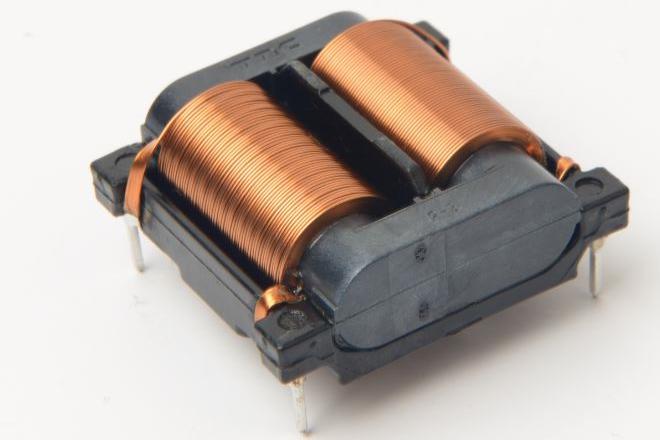

Flat wire SERIES

Flat wire Filter series are High inductance, lowleakage and have excellent electromagnetic noise suppression properties.



Part Number and Specifications

Part No.

Rated current(A)

Inductance(mH)

DC R(mΩ)

Rated Voltage(V)

Q□161411□

1.5

(100KHz) 7.7mH MIN

188

300

Q□181610□

2.0

(16KHz) 7.0mH MIN

156

300

Q□191615□

1.5

(16KHz) 10.5mH MIN

260

300

Q□191810□

2.3

(16KHz) 10mH

152

300

Q□241815□

3.0

(16KHz) 15mH

158

300





For safety and the proper usage, you are requested to approve our product specification

This contents subject to change without advance notice. Please check with our sales or R&D before ordering.
