TNC
Description

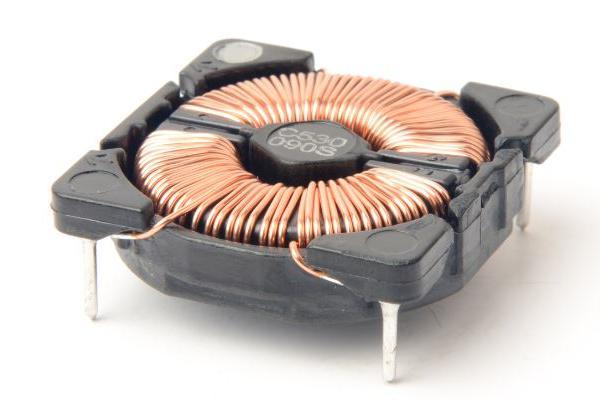

SLIM 25Φ SERIES
SLIM 25Φ Line Filter series are compact in size and large Inductance and Have excellent electromagnetic noise suppression properties.
Part Number and Specifications
Part No. |
Rated current(A) |
Inductance(mH) |
DC R(mΩ) |
Rated Voltage(V) |
|||||||||||||||||||||||||||||||||
C□523245S□□ |
2.3 |
24.5 |
170 |
300 |
|||||||||||||||||||||||||||||||||
C□530090S□□ |
3.0 |
9.0 |
107 |
300 |
|||||||||||||||||||||||||||||||||
C□540110S□□ |
4.0 |
11.0 |
85 |
300 |
|||||||||||||||||||||||||||||||||
C□545065S□□ |
4.5 |
6.5 |
53 |
300 |
|||||||||||||||||||||||||||||||||
C□550060S□□ |
5.0 |
6.0 |
61 |
300 |
|||||||||||||||||||||||||||||||||
C□560050S□□ |
6.0 |
5.0 |
44 |
300 |
|||||||||||||||||||||||||||||||||
C□580020S□□ |
8.0 |
2.0 |
18 |
300 |
|||||||||||||||||||||||||||||||||
C□570070S□□ |
7.0 |
7.0 |
37 |
300 |
|||||||||||||||||||||||||||||||||
C□545200F□□ |
4.5 |
20.0 |
55 |
300 |
|||||||||||||||||||||||||||||||||
C□550160F□□ |
5.0 |
16.0 |
44 |
300 |
|||||||||||||||||||||||||||||||||
C□560120F□□ |
6.0 |
12.0 |
30 |
300 |
|||||||||||||||||||||||||||||||||
C□570075F□□ |
7.0 |
7.5 |
25 |
300 |
|||||||||||||||||||||||||||||||||
C□580080F□□ |
8.0 |
8.0 |
23 |
300 |
For safety and the proper usage, you are requested to approve our product specification
This contents subject to change without advance notice. Please check with our sales or R&D before ordering.
