TNC

TNC

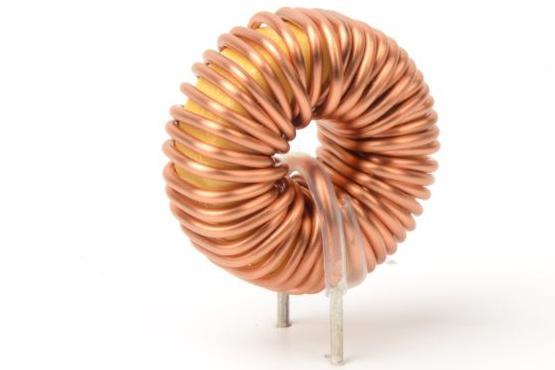

Normal Mode Coil

Model

Series

Line Filter


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

The Republic of Korea


Description

175 SERIES

- FEATURES 175-SERIES Line Filter serise is compact in size. And Low Leakage of flux and and vibration noise of gap-less structure.

- APPLICATIONS For smoothing switching power supplies For nomal mode line filter For messuring instrument For noise prevention of SMPS,TV,etc.



Part Number and Specifications

Part No.

Rated current(A)

Inductance(uH)

DC R(mΩ)

Rated Voltage(V)

N□A175-25400□2

2.5

400.0

218

300

N□A175-30200□2

3.0

200.0

140

300

N□A175-70045□2

7.0

45.0

32

300

N□S175-50045□2

5.0

45.0

38

300

N□A175-55140□2

5.5

140.0

53

300

N□A175-65080□2

6.5

80.0

57

300
