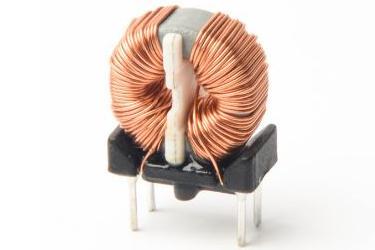

Common Mode Coil
Model Name
10Φ Series
Series
Line Filter
Data
-
Manufacturer information
provider logo
TNC

Electromagnetic wave shield parts manufacturer, Line filter, EMI filter, Blocking filter

Problem with product info?
Update request
Manufacturer
TNC
Product Type
Machine
Brand
-
SKU
136962
Product Name
Common Mode Coil
Model Name
10Φ Series, CV0J, CV0D, CV0F, CH0B, CH0D
Size
-
Weight
-
Product Details

10Φ SERIES

10Φ Line Filter series are compact in size and large Inductance and have excellent electromagnetic noise suppression properties. Get stability between each parties with outside case type. Improved noisy by high frequency.



Part Number and specifications

Part No.

Rated current(A)

Inductance(mH)

DC R(mΩ)

Rated Voltage(V)

C□003400S□□

0.3

40.0

1100

300

C□004300S□□

0.4

30.0

1002

300

C□005200S□□

0.5

20.0

1194

300

C□008090S□□

0.8

9.0

264

300

C□015030S□□

1.5

3.0

96

300

C□025010S□□

2.5

1.0

36

300

C□030450S□□

3.0

0.45

30

300

C□03006UN□□

3.0

0.060

37

300

C□040031N□□

4.0

0.031

23

300

C□050031N□□

5.0

0.031

24

300





For safety and the proper usage, you are requested to approve our product specification

This contents subject to change without advance notice. Please check with our sales or R&D before ordering.
