TNC

TNC

Common Mode Coil

Model

Series

Line Filter


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

The Republic of Korea


Description

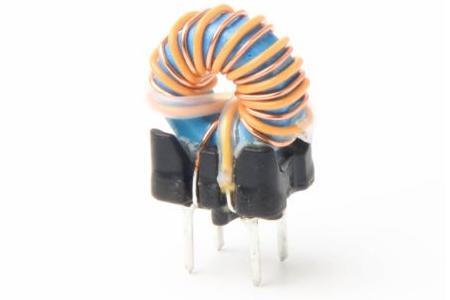

DC 8Φ SERIES

DC 8Φ Line Filter series are compact in size and large Inductance and have excellent electromagnetic noise suppression properties. Get stability between each parties with outside case type. Improved noisy by high frequency. (FOR DC)



Part Number and Specifications

Part No.

Rated current(A)

Inductance(mH)

DC R(mΩ)

Rated Voltage(V)

C□A05080S□□

0.5

8.0

513

50

P□A20290□□

2.0

0.29

71

50

P□A30180□□

3.0

0.18

65

50

P□A35023N□□

3.5

0.023

36

50

P□A50200N□□

5.0

0.2

23

50

P□A60120□□

6.0

0.12

19

50

P□A60160□□

6.0

0.16

21

50

C□A6011RN□□

6.0

0.011

16

50

P□A70050□□

7.0

0.05

12

50

P□A80030□□

8.0

0.03

12

50

P□AA0030□□

10.0

0.03

9

50





For safety and the proper usage, you are requested to approve our product specification

This contents subject to change without advance notice. Please check with our sales or R&D before ordering.
