Description
230 SERIES
- FEATURES 230-SERIES Line Filter serise is compact in size. And Low Leakage of flux and and vibration noise of gap-less structure.
- APPLICATIONS For smoothing switching power supplies For nomal mode line filter For messuring instrument For noise prevention of SMPS,TV,etc.

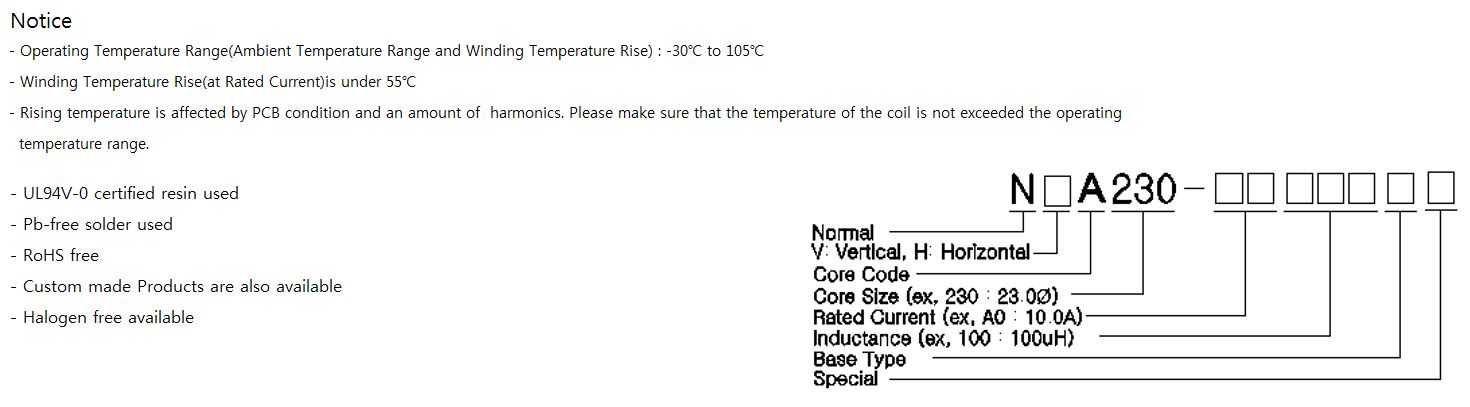

Part Number and Specifications
|
Part No. |
Rated current(A) |
Inductance(uH) |
DC R(mΩ) |
Rated Voltage(V) |
|||||||||||||||||||||||||||||||||
|
N□A230-70150□2 |
7.0 |
150.0 |
43 |
300 |
|||||||||||||||||||||||||||||||||
|
N□A230-90110□2 |
9.0 |
110.0 |
22 |
300 |
|||||||||||||||||||||||||||||||||
|
N□A230-A0100□2 |
10.0 |
100.0 |
17 |
300 |
|||||||||||||||||||||||||||||||||
