TNC

TNC

Common Mode Coil

Model

Series

Line Filter


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

The Republic of Korea


Description

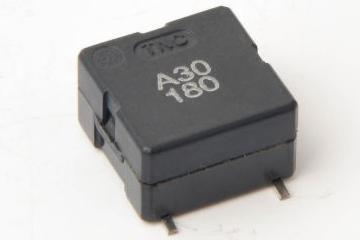

SMD SERIES

SMD Line Filter series are compact in size and large Inductance and have excellent electromagnetic noise suppression properties. Get stability between each parties with outside case type. Improved noisy by high frequency.



Part Number and Specifications

Part No.

Rated current(A)

Inductance(mH)

DC R(mΩ)

Rated Voltage(V)

C□A08060S□□

0.8

6.000

390

50

C□A15008□□

1.5

0.800

125

50

C□A20450□□

2.0

0.450

67

50

C□A30180□□

3.0

0.180

50

50

C□004300S□□

0.4

30.0

1235

300

C□005200S□□

0.5

20.0

1194

300

C□015030S□□

1.5

3.0

96

300





For safety and the proper usage, you are requested to approve our product specification

This contents subject to change without advance notice. Please check with our sales or R&D before ordering.
