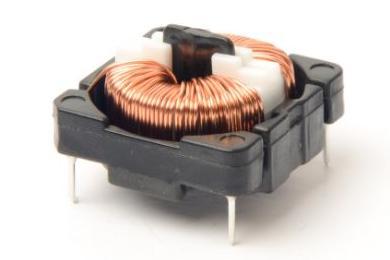

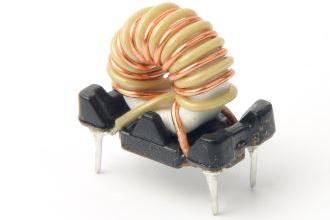

product Image
Common Mode Coil
Model Name
25Φ Seriesm
Series
Line Filter
Data
-
Manufacturer information
provider logo
TNC

Electromagnetic wave shield parts manufacturer, Line filter, EMI filter, Blocking filter

Problem with product info?
Update request
Manufacturer
TNC
Brand
-
SKU
136988
Product Name
Common Mode Coil
Model Name

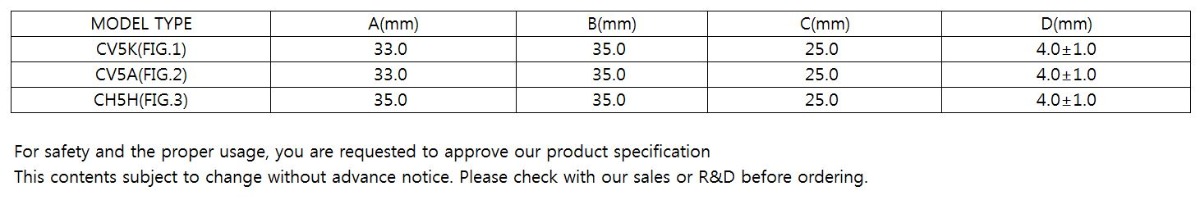

25Φ Seriesm, CV5K, CV5A, CH5H
Size
-
Weight
-
Product Details

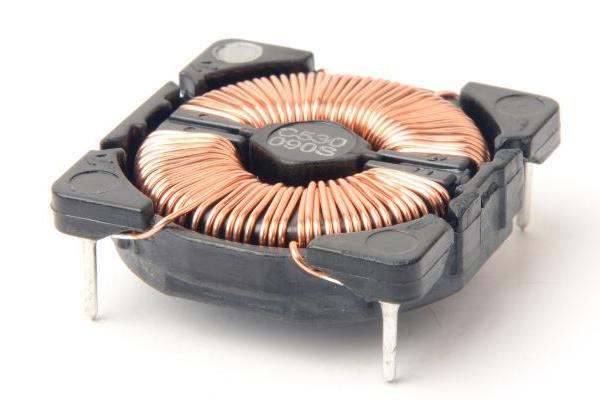

25Φ SERIES

25Φ Line Filter series are compact in size and large Inductance and have excellent electromagnetic noise suppression properties.



Part Number and Specifications

Part No.

Rated current(A)

Inductance(mH)

DC R(mΩ)

Rated Voltage(V)

C□530400S□□

3.0

40.0

161

300

C□535140□□

3.5

14.0

143

300

C□540230S□□

4.0

23.0

85

300

C□540260S□□

4.0

26.0

91

300

C□550080□□

5.0

8.0

77

300

C□550110□□

5.0

11.0

78

300

C□550140S□□

5.0

14.0

46

300

C□550180S□□

5.0

18.0

67

300

C□570060□□

7.0

6.0

46

300

C□570100S□□

7.0

10.0

46

300

C□570120S□□

7.0

12.0

35

300

C□575085S□□

7.5

8.5

39

300

C□580040□□

8.0

4.0

33

300

C□580060S□□

8.0

6.0

28

300

C□5A0020□□

10.0

2.0

23

300

C□5A0050S□□

10.0

5.0

20

300

C□5A1038S□□

11.0

3.8

16

300

C□5A2013□□

12.0

1.3

14

300

C□5A2035S□□

12.0

3.5

14

300

C□5A5009□□

15.0

0.9

10

300

D□550180S□□

5.0

18.0

67

300

D□580080S□□

8.0

8.0

30

300



For safety and the proper usage, you are requested to approve our product specification

This contents subject to change without advance notice. Please check with our sales or R&D before ordering.
