| ELECTRON OPTIC SYSTEM | |||
| Resolution | 4nm@SE | Magnification | 10X ~ 200,000X(Max.) (Additional Digital Zoom 2X, 4X, 8X) |
| Accelerating Voltage | 0.2kV ~ 20kV | Image Shift | 250μm (X,Y), Image Rotation (360°) |
| Stage Motorization & Movement (X, Y, Z)mm | Standard : 5-Axis Manual Stage Option : 3-Axis[X, Y, R] Motorized Stage : 50/60/45 mm (Tilt 0° ~ 60°, Rotation 360°) |
Option | BSE, EDS, Cooling Stage 외 |
Saeron Technology
Saeron Technology
Description
AIS1800C
(Scanning Electron Microscope)
Product Description : The world’s best performance beyond the structural limits of the Tablet MINI SEM
– Academic Version I (Compact Desk-Side Mini SEM)
Patents and Certifications : CE Certificates

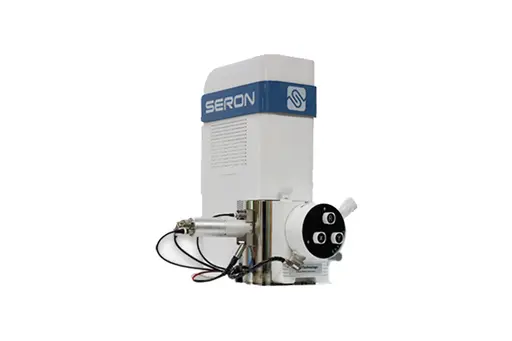

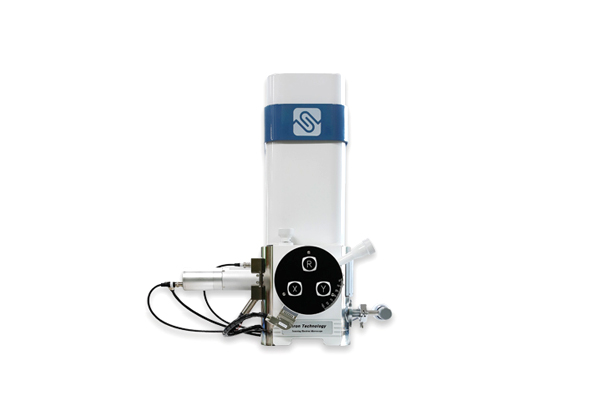

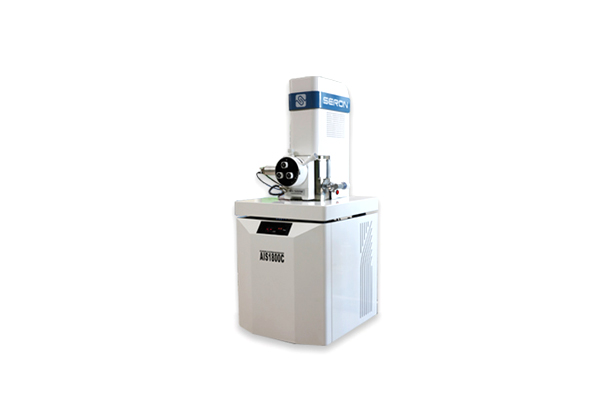

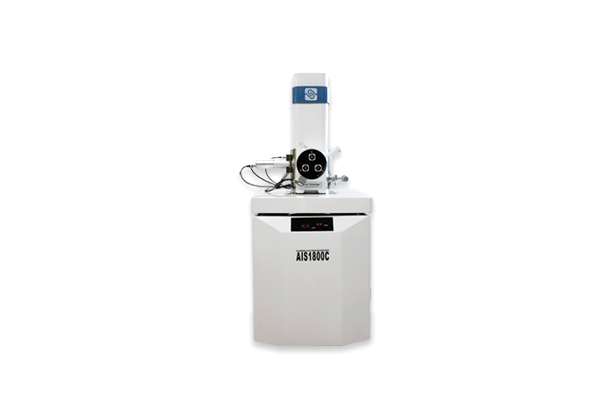

COMPACT SEM AIS1800C
A mini SEM with the world’s best performance beyond the structural limits of the tablet mini SEM
- Low-kV video-rate imaging
- Optic design using technology to reduce numerical values for resolution improvement
- Minimal installation and operating space for maximized work efficiency
Features
1) Low KeV (from 0.6kV) video-rate imaging – Non-coating
2) Resolved disadvantages of Mini SEM(ex. internal vibration, heat, and EMI)
3) A mini-SEM with the world’s highest resolution
4) Minimal installation and operating space – 540(W) X 570(D) X 1300(H)mm³
5) Equipped with powerful analysis S/W and various measurement tools
6) Application of technology to reduce aberration – For better resolution
7) ET-Type SE Detector (SE/BSE conversion mode)
Specifications
