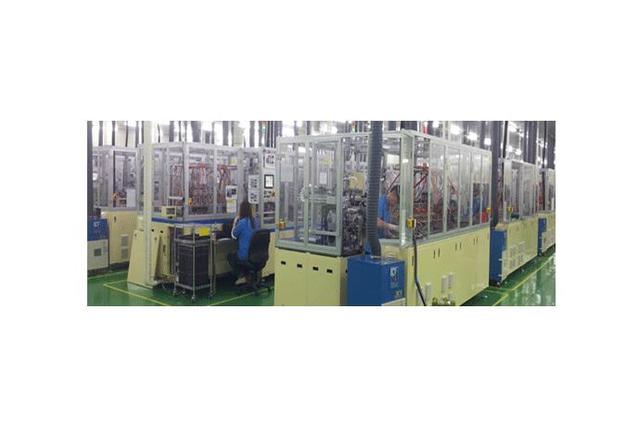

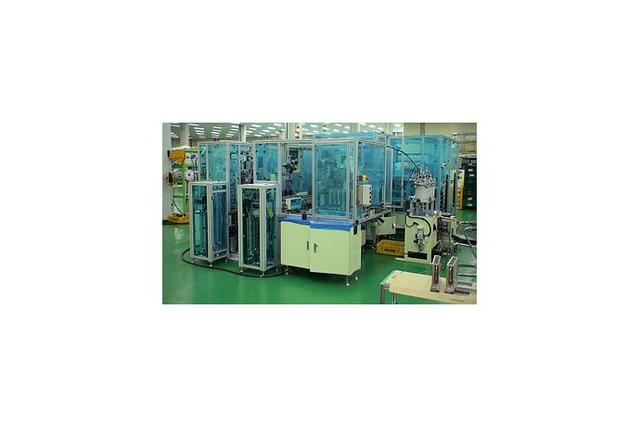

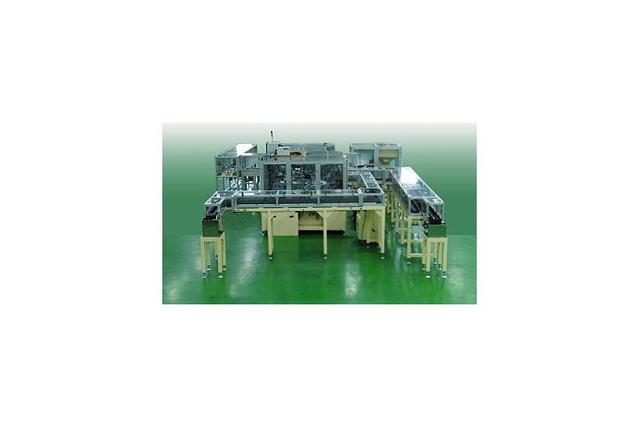

Product Name Auto Stacker
Model
Series Battery
Catalog
Product Description

Outline

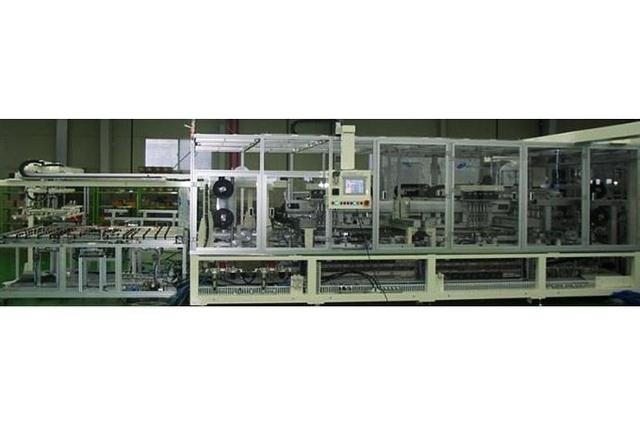

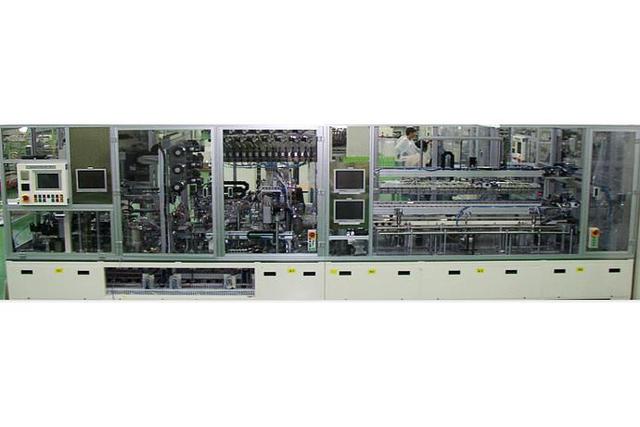

This equipment cross-stacks positive/negative electrodes cut during Pouch Type EV Battery manufacturing process, by alternating with the Separator in sequence.

Specification

Dimension

3200 * 2000 * 2000

Jelly Roll Size

Max 157 * 267

Jelly Roll Thickness

Max 13.8

Cycle Time

1.5 sec / 1 electrode [Equipment throughput determined by total number of stacks]

Electrode Magazine Loader

2 Magazines each for positive/ negative electrodes [Shuttle Type]

Alignment

Visual camera for cell alignment and inspection of chip around the edge of the electrodes

High Speed Movement

Linear Motor [Magnetic Core]

Separator Feeding

Tension & EPC Control

Separator finish

Edge Bonding Type – Type 1 Tape
Attachment Type – Type 2
