Outline

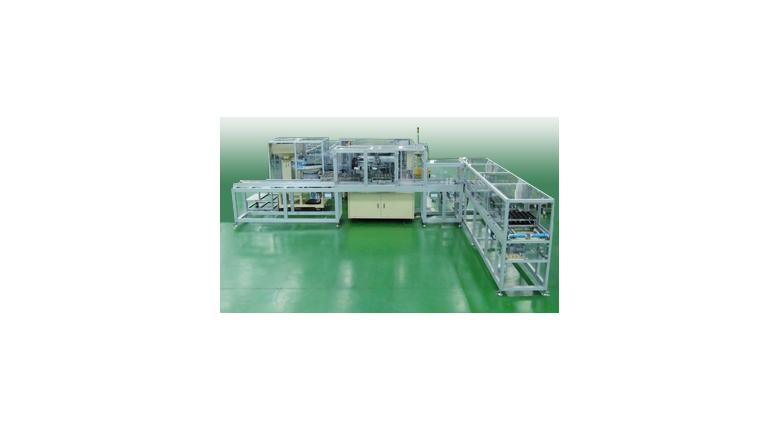

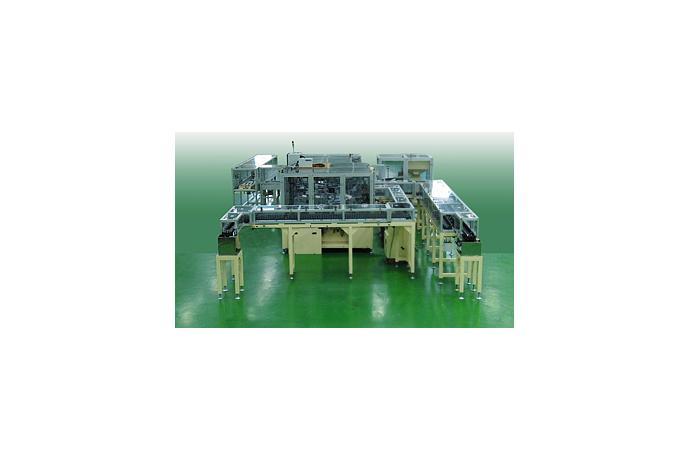

This equipment is used to assemble Ignition Coils which is a high pressure step-up product used in vehicle Spark.
Primary and secondary coils fed through a coil winding machine are assembled, resistance welded, and then discharged to the following liquid injection process.

Specification

Dimension

4700 * 8100 * 2000

Cycle Time

12 ppm

Welding

Resistance Welding Type

Parts

1st Coil / 2nd Coil / Core / Housing

Inspection

Resistance Check

Transportation

1 Pitch Transfer Type
