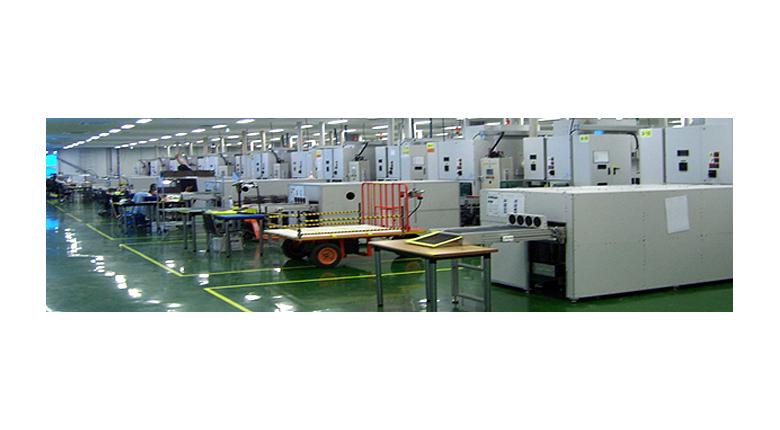

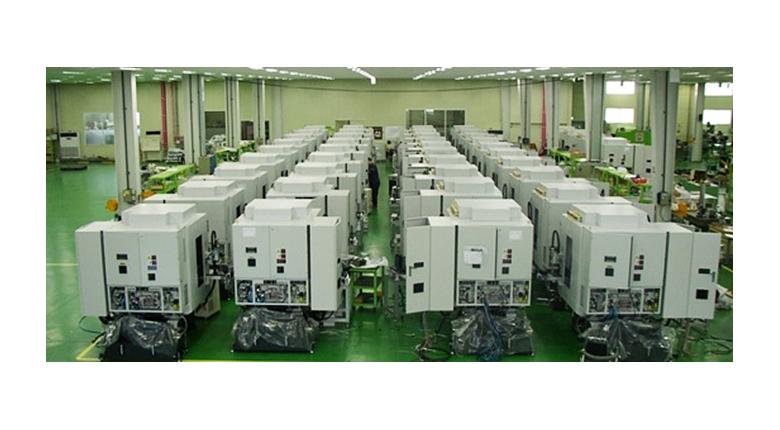

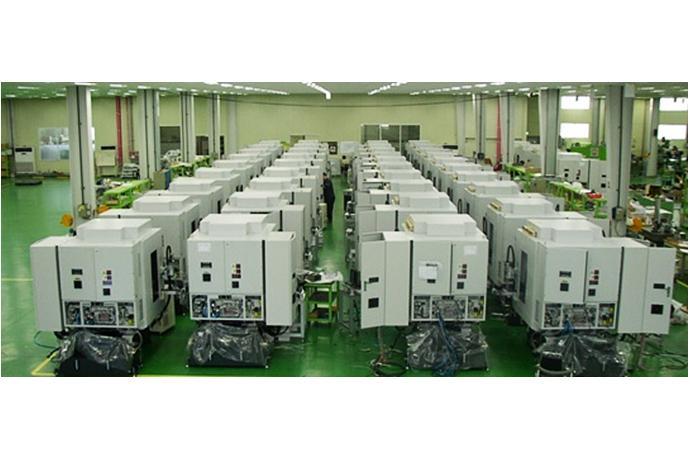

Outline

Mobile Phone & IT Glass Edge & Bevel section Grinding equipment mounted with 4 Spindles which enable cutting of the Straight, Round, Hole and Notch areas of 4 Glass panels in the same Stage during single operation. This particular equipment has the capability to produce uniformed high quality products.

Core Technology

- Chipping eradication
- Production Capacity [4 Cell/2~3min, 4”]
- Simultaneous Edge & Bevel processing in the same Stage
- Processing range [Straight, Round, Hole, Notch]
- High quality, uniformed production
- User Friendly

Specification

Equipment

Operation range

600(X) 400(Y) 400(Z)

Linear precision

±0.005mm

Repetition precision

±0.003mm

Spindle Head

2.8kw 4 Sets , 60.000rpm

Jig & Fixture

Jig : Rack Pinion
Tool Setting : 4 Axis Servo Control
Handler : 1Axis 2 Stroke Servo Control

Production Capacity

4” standard [2~3min/1Cell]

Control

7 Axis (x, y, z, Spindle Up/Down) Servo
Spindle Turn 4 Axis Inverter
Handler 1-axis Servo

Equipment Size

3000(W) 2600(L) 2600(H)

Utility

Power Specification

220V 3Φ 10kW 60Hz, 4P

Compressed Air

5kgf/㎠~6kgf/㎠
