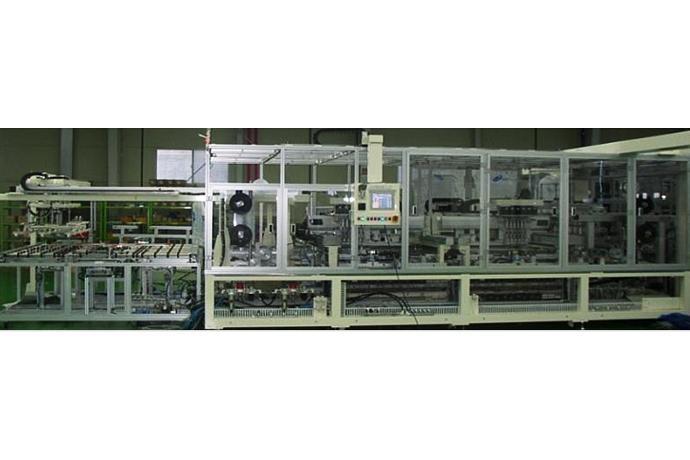

Layup & Bussing
Model Name
-
Size
-
Weight
-
Product Details



Outline

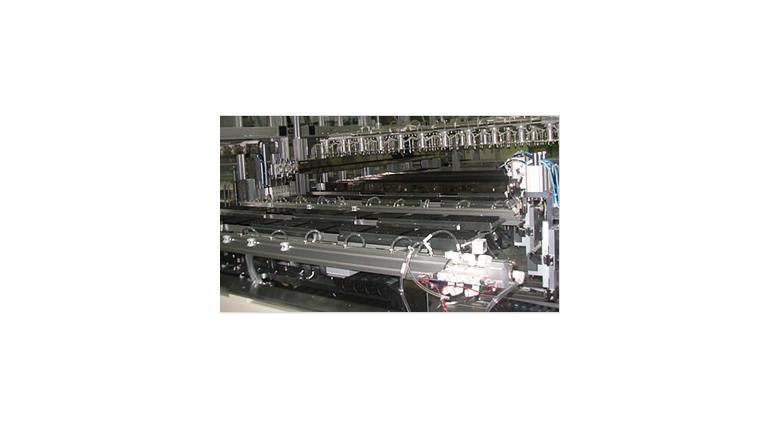

Layup: This equipment, after Tabbing, cuts the ribbon into specified length then layers the “+,-“ on top of the Jig Pallet.

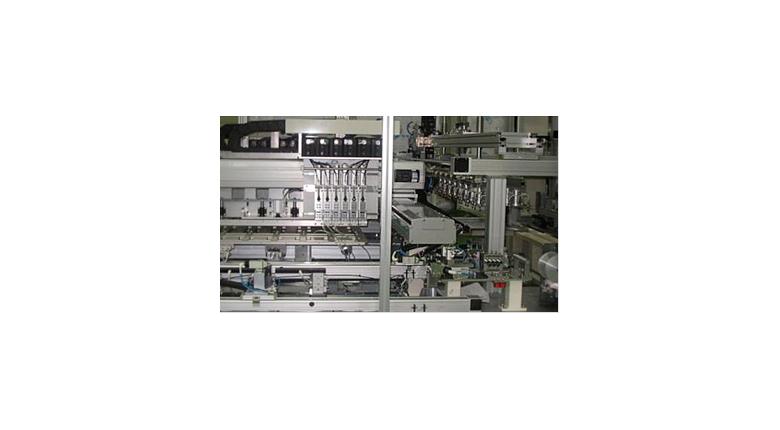

Bussing: Bus Bar is cut then supplied to the String electrode and automatically soldered.

Specification

Capacity

Wafer 6” 6P*10Cell , 360 String/1Hr Tact Time = 60Sec

LayUP

Traverse [Stringing Cell Moving from Taber]

Transfer-1 [Loading to Alignment / Buffer Stage]

Transfer-2 [Loading to Edge Ribbon Cut Stage]

Buffer 4 Station

Stringing Alignment

Edge Ribbon Adjust Cutter

String to String Pitch : 2±0.5mm, 3±0.5mm

Bussing

Transfer-1 [Load to Jig Pallet]

Transfer-2 [Load to Glass EVA Sheet]

Bushing Jig Pallet

Pallet Return Equipment

Straight Ribbon Bushing Equipment

Angle Ribbon Bushing Equipment

Bus Bar Straight: (after cutting)_R/L ±0.2mm

Bus Bar 90˚ Disposition ±0.5˚

Soldering Cross area Over 80% (Peel test ]
