Byucksan DDF (Double Deck Floor) is the most appropriate system to create clean and creative office environment.
Especially, FRC panel is the product acquired to indicate “KS F 4760 Raised Access Floor” for the first time in Korea.
Introduction
Although installation of various office supplies are expanding in accordance with the advanced information era, appearance of their connecting cables or cooling/heating pipes, ducts and others are not satisfactory enough as exposed on floor surface, and it declines work efficiency.

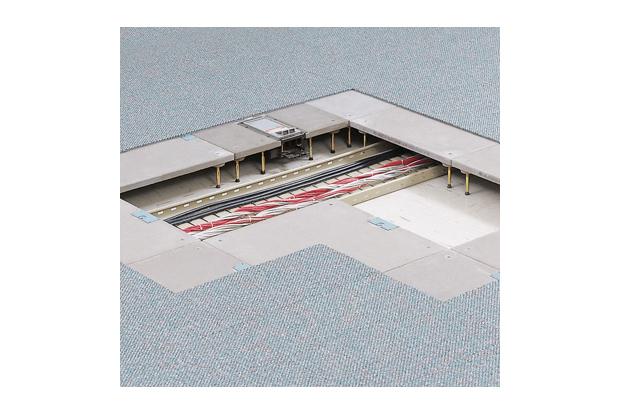

Byucksan DDF system is a futuristic system developed to solve these issues, and improve work environment clean as conveniently change wiring methods by space layout changes and protecting expensive advanced devices.
Certificates
Application

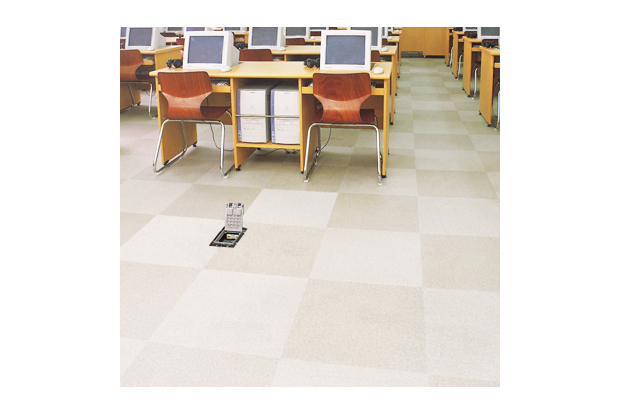

Space where puts priority in comfortable walking i.e. general offices, computer rooms, control centers, studios, research centers, hospitals, hotels, schools, etc.
Features

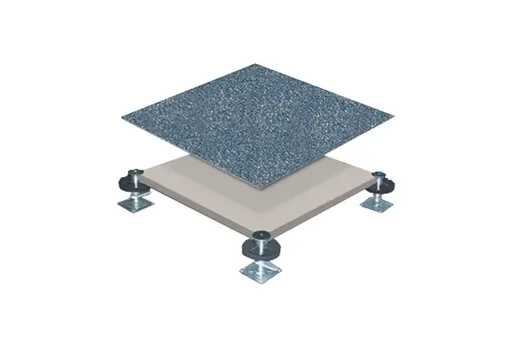

DDF-FC
Double floor system, D.D Floor-FC, made by special FRC is an ideal and optimistic OA Floor system with ergonomic design, comfortable walking, durability, weight resistance, response feasibility depending on layout changes.
Features
Excellent functionality for system wiring.
• Available to have big wiring capacity and systemization of wiring.
• Never burn from fire and protect wiring.
• Convenient in changing wiring and layout.
Excellent walk-ability.
• Available to choose the height from 70~500mm.
• Available to construct in a short period of time.
• Easy installation of partition.
Excellent processability.
• Better walk-ability with special FRC materials than others, and create clean indoor environment.
Application
• General offices, computer rooms, control centers, studios, research centers, hospitals, hotels, schools
• Widely use to spaces where uses office supplies or high-tech devices.
Properties
| Classification | Properties |
|---|---|
| Panel Materials | High-strength special FRC(Steel Mesh reinforced) |
| Size | 500×500×22mm / 500×500×25mm |
| Panel Weight | 11.0kg/sheet (44.0kg/㎡) / 14.0kg/sheet(56.0kg/㎡) |
| Construction Height | Pedestal Type H = 70~500mm(separate agreement required for 500mm or higher) |
| Compression Load | 4.0mm or lower, under 2940N(300kgf) 4.0mm or lower, under load 4900N(500kgf) |
| Uniform Load | 1,200kgf/㎡ |
| Finishing Materials | Carpet tile, vinyl tile for OA (5T) |
DDF-SC
Excellent in weight resistance, impact resistance, durability and walk comfortableness as structured in 3 layers of top plate, light concrete, bottom plate made by steel plates.
Features
• Excellent in resonance prevention, walk comfortableness, weight resistance, impact resistance with infilling.
• Convenient in wiring replacement and layout change with corner lock system.
• Beautiful appearance with powder coating, and excellent in durability.
• Excellent in order response capability with automated facility.
• Available to adjust construction height from 70 to 500mm.
• Excellent functionality for system wiring.
Application
• General offices, computer rooms, control centers, studios, research centers, hospitals, hotels, schools
• Widely use to spaces where uses office supplies or high-tech devices.
Properties
| Classification | Properties |
|---|---|
| Panel Materials | Steel + Light concrete filled |
| Size | 500×500×25mm |
| Panel Weight | 9~12kg/sheet (36~48kg/㎡) |
| Construction Height | H = 70~500mm (separate agreement required for 500mm or higher) |
| Compression Load | 4.0mm or lower, under 2940N(300kgf) |
| Uniform Load | 1,200kgf/㎡ |
| Finishing Materials | Carpet tile, vinyl tile for OA (5T) |
DDF-ST
Light with strong spot welding of top and bottom plates made of steel plates (lightness), and excellent in durability, processability and maintenance.
Features
• Available to recycle resources as it is an all steel product.
• Light panel.
• Beautiful product with powder coating, and excellent in durability.
• Excellent in order response capability with automated facility.
• Excellent in maintenance with corner lock system.
• Excellent functionality for system wiring.
Application
• general offices, computer rooms, control centers, studios, research centers, hospitals, hotels, schools, renovation buildings
• Widely use to spaces where uses office supplies or high-tech devices.
Properties
| Classification | Properties |
|---|---|
| Panel Materials | Steel |
| Size | 500×500×25mm |
| Panel Weight | 6kg/sheet (24kg/㎡) |
| Construction Height | H = 70~500mm (separate agreement required for 500mm or higher) |
| Interior Pressure Resistance | 4.0mm or lower, under 2940N(300kgf) |
| Uniform Load | 1,200kgf/㎡ |
| Finishing Materials | Carpet tile, vinyl tile for OA (5T) |
DDF-AC
Excellent in weight resistance, impact resistance, durability and walk comfortableness as structured in 3 layers of top plate, light concrete, bottom plate made by steel plates.
Features
• Improve productivity with improved working environment.
• Excellent in resonance prevention, walk-ability, weight resistance, impact resistance with infilling.
• Beautiful product with powder coating, and excellent in durability.
• Excellent disaster prevention effect with use of noncombustible materials.
• Excellent in order response capability with automated facility.
Application
• Big computer room, safety center, laboratory, showroom, central control room, EPS room, etc.
Properties
| Model Name | DDF-AC | |
| Material Size | Top | Hot-rolled steel sheet (SCP) 612×612(1.2T, 1.6T, 2.0T) |
| Bottom | Cold-rolled steel sheet (SCP) 670×670(1.0T, 1.2T) | |
| Size | 600×600 / 610×610 | |
| Weight / kg | 15kg ~ / sheet | |
| Filling Materials | Light concrete | |
| Finishing Materials | DLX & Conductive TILE 2T, 3T | |
| Length | ±0.5mm or less of each side length | |
| Perpendicularity | 0.1% or lower of one side length | |
| Flatness | 1.0mm or lower for surrounding, 2.0mm or lower for main part and others | |
| Compression Load | 4.0mm or lower if, under load 4900N(500kgf) | |
DDF-AS
Light with strong spot welding of top and bottom plates made of steel plates, and excellent in durability, processability and maintenance.
Features
• Available to recycle resources as it is an all steel product.
• Available to minimize structural weight.
• Beautiful product with powder coating, and excellent in durability.
• Excellent in order response capability with automated facility.
Application
• General office, computer room, safety center, laboratory, central control room, EPS room, etc.
Properties
| Model Name | DDF-AS | |
| Material Size | Top | Hot-rolled steel sheet (SHP) 612X612(1.6T, 2.0T, 2.3T) |
| Bottom | Cold-rolled steel sheet (SCP) 670X670(1.2T, 1.5T) | |
| Size | 600×600 / 610×610 | |
| Weight / kg | 10kg ~ / sheet | |
| Finishing Materials | DLX & Conductive TILE 2T, 3T | |
| Length | ±0.5mm or less of each side length | |
| Perpendicularity | 0.1% or lower of one side length | |
| Flatness | 1.0mm or lower for surrounding, 2.0mm or lower for main part and others | |
| Compression Load | 4.0mm or lower if, under load 4900N(500kgf) | |
DDF-AW
Maintain comfortable walking with characteristic of wood and easy construction as special high-pressure particle board.
Features
• Excellent weight resistance with complex structure of top and bottom plates.
• Excellent in dampproof and smoke proof as covering particle board with aluminum sheet.
• Easy construction.
Application
• Computer room, video room, telephone operating room, treating room in hospital, broadcasting company, EPS room
Properties
| Model Name | DDF-AW |
| Panel Materials | High strength particle board + Laminate tile/AI sheet |
| Size | 600×600×35mm |
| Construction Height | H : 100mm ~ |
| Compression Load | 4.0mm or lower, under 2940N(300kgf) |
| Finishing Tile | Carpet tile, conductive tile, HPL tile |
Accessories
Deluxe Type
Size : 300×300mm
Thickness : 2~3mm
Electric Resistance (Ω) : Non-conductive
H.P.L. Tile
Size : 600×600mm
Thickness : 1.2mm
Electric Resistance (Ω) : 109 ~ 1011
Conductive tile
Size : 600×600mm
Thickness : 2~3mm
Electric Resistance (Ω) : 106 ~ 107
