Introduction

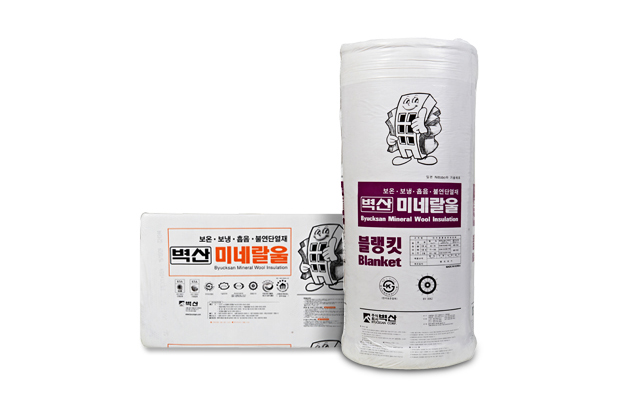

Byucksan Mineral Wool has very wide range of use compared to the other insulations as made by hot-dip calcium silicate ore with high temperature. It is used for from fireproof/sound absorption/heating/insulation of buildings to heating/insulation/cooling of various plants, ships, and seed plate for agriculture. Also, it is essential material for energy saving with flexible fiber, excellent recovery and low thermal conductivity compared to other products.
Certificates
Application
Maintenance facility, sanitary arrangements, condensation prevention, rooftop insulation, outer wall insulation, cold storage, etc.
Thermal material of ship, boiler furnace wall, piping, drying furnace, heat treatment equipment, etc.
Sound facility of hall, building, machinery room, electricity room, office, gym, sound proof panel, various plant sound proof construction, various partition, etc.
Various fireproof structural method materials, fireproof partition core materials, fireproof door core material
Features
※ Actual product may seem different from the image, please contact the an sales staff for the details.
Byucksan Mineral Wool heat insulating board is the processed product in a board with adhesive binder, has features of light, elasticity, excellent sound absorption/sound insulation/insulation and humidity resistance.
Features
- Economical, excellent in insulation and heating effects.
- Excellent in sound absorption and sound insulation.
- Excellent in elasticity.
Application
- Apartments, insulation/condensation prevention of general houses
- Sound proof of school, general houses
- Insulation of duct/sound absorption of machinery and electricity rooms
- Insulation/Sound absorption of wall/partition
- Sound absorption materials for sound adjustment of hall, studio, gym, etc.
- Fireproof zone
General Size and Properties
| Density (kg/㎡) |
Standard Size | Thermal Conductivity W/mK |
Heat Shrinking Temp.(℃) |
||
|---|---|---|---|---|---|
| Thickness (mm) |
Width (m) |
Length (m) |
Average Temperature 70℃ {Average Temperature 20℃} |
||
| 50 | 50 | 0.5 | 1 | 0.049 {0.039} or lower |
400 or higher |
| 60 | |||||
※ Properties Standard : KS L 9102
Reverberant Sound Absorption Coefficient
| Mineral Wool Felt (Air Layer 0mm) | ||||||
|---|---|---|---|---|---|---|
| Frequency | 125 | 250 | 500 | 1000 | 2000 | 4000 |
| Thickness : 50mm | 0.19 | 0.67 | 0.94 | 0.90 | 0.79 | 0.48 |
※ Actual product may seem different from the image, please contact the sales staff for the details.
Mineral wool board is more flexible and easy to construct than other high-temperature insulation materials.
It can be used for high-temperature areas or fire resistance and heat resistance in double-insulating systems.
Features
- Excellent insulating performance.
- There are various product specifications.
- Flexibility and ease of construction.
- The applicable temperature range of use is wide.
Application
- Insulation on industrial facilities such as power generation boilers
- For back-up of ceramic insulations
- Ship's insulation
- Insulation on various dryers and heat treatment devices
- Curtain wall insulation and sound absorption
- Fireproof partition wall, door core
General Size and Properties
| Product No. | Density (kg/㎥) |
Standard Size | Thermal Conductivity W/mK |
Heat Shrinking Temp. (℃) |
||
|---|---|---|---|---|---|---|
| Thickness (mm) |
Width (m) |
Length (m) |
Average Temperature 70℃ {Average Temperature 20℃} |
|||
| 1호 | 80 | 50, 75, 100 | 0.5 1 |
1 | 0.044 {0.037}or lower |
600 or higher |
| 100 | 25 50 75 100 |
|||||
| 2호 | 120 140 |
0.043 {0.036}or lower |
||||
| 3호 | 200 | 50 | 0.044 {0.038}or lower |
|||
※ Properties Standard : KS L 9102
Reverberant Sound Absorption Coefficient
| Mineral Wool Felt (Air Layer 0mm) | ||||||
|---|---|---|---|---|---|---|
| Frequency(Hz) | 125 | 250 | 500 | 1000 | 2000 | 4000 |
| Thickness : 50mm | 0.22 | 0.89 | 1.03 | 0.93 | 0.83 | 0.67 |
※ Actual product may seem different from the image, please contact the sales staff for the details.

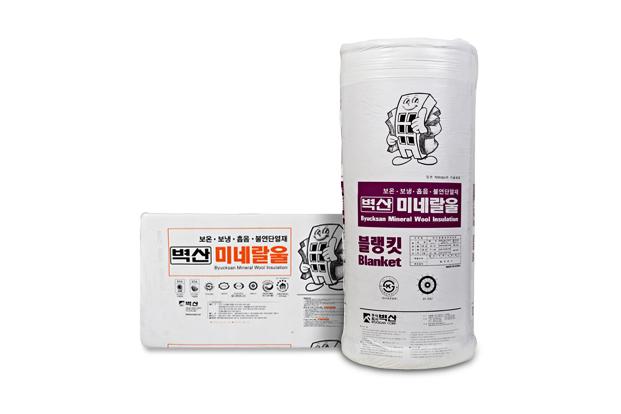

Blanket minimizes binder but is reinforced one side with paper or net, and used as heating insulation material of ceiling or round duct of general building.
Features
- Excellent in flexibility.
- Easy to construct for curved or complex construction surface.
Application
- Ceiling of general building, heating insulation material under floor
- Heating/Insulation/Cooling of various tanks or round ducts
General Size and Properties
| Density (kg/㎥) |
Standard Size | Thermal Conductivity W/mK |
Heat Shrinking Temp. (℃) |
||
|---|---|---|---|---|---|
| Thickness (mm) |
Width (m) |
Length (m) |
Average Temperature 70℃ {Average Temperature 20℃} |
||
| 60 | 50 | 1 | 5 | 0.049 {0.039} or lower |
400 or higher |
| 80 | 25 | 10 | 0.044 {0.037} or lower |
600 or higher | |
| 50 | 5 | ||||
| 75 | 3 | ||||
※ Properties Standard : KS L 9102
Reverberant Sound Absorption Coefficient
| Blanket Air Layer (0mm) | ||||||
|---|---|---|---|---|---|---|
| Frequency (Hz) | 125 | 250 | 500 | 1000 | 2000 | 4000 |
| Thickness : 25mm | 0.11 | 0.37 | 0.64 | 0.87 | 0.87 | 0.92 |
| Thickness : 50mm | 0.15 | 0.62 | 0.89 | 0.97 | 0.95 | 0.95 |
※ Actual product may seem different from the image, please contact the sales staff for the details.

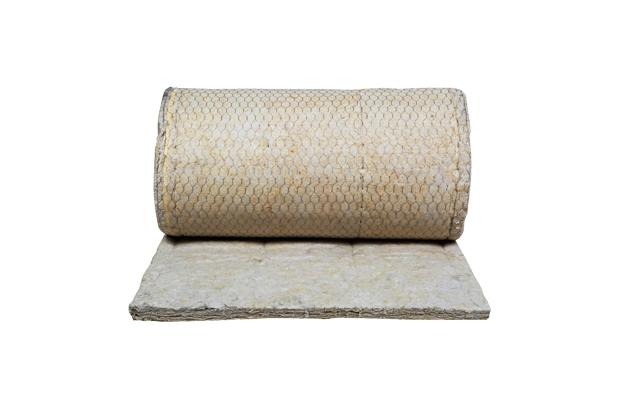

Wired Blanket forms mineral wool into slight amount of binder and make as board, then saw hexagonal wire mesh with galvanized wire on the other side. Excellent in Processability, appropriate to complex curved residual heat construction, and reinforced heat resistance even more as binder is less.
Features
- Excellent Processability.
- Convenient in insulation construction i.e. complex curved surface
- Excellent heat resistance.
Application
- Round duct, large diameter pipe, valve, flange, various tanks, thermal power generating boiler, etc.
General Size and Properties
| Density (kg/㎥) |
Standard Size | Thermal Conductivity W/mK |
Heat Shrinking Temp. (℃) |
||
|---|---|---|---|---|---|
| Thickness (mm) |
Width (m) |
Length (m) |
Average Temperature 70℃ {Average Temperature 20℃} |
||
| 80 100 |
25, 50, 75 | 1 | 3 5 10 |
0.044 {0.037} or lower |
600 or higher |
| 120 | 50 | 0.043 {0.036} or lower |
600 or higher | ||
※ Properties Standard : KS L 9102
Thermal Conductivity Reference
Actual product may seem different from the image, please contact the sales staff for the details.
Lamela Mat is a product attaching foil by cutting mineral wool heat insulating board into a certain space and stand them in longitudinal fiber direction, and is widely use to round duct and pipe constructions.
Features
- Appropriate for heat/insulation of big-size pipes and round tanks.
- Excellent compressive strength.
- Easy construction
- No additional stiffener required.
Application
- Maintenance, sanitary arrangements (round duct, pipe, curved area, etc.)
- Ventilating duct of apartment kitchen range
- Heating/Sound proof of plant piping, etc.
- fireproof method of pipe for bridges
General Size and Properties
※ Properties Standard : KS L 9102
Thermal Conductivity Reference
| Density (kg/㎥) |
Standard Size | Thermal Conductivity W/mK |
Heat Shrinking Temp. (℃) |
||
|---|---|---|---|---|---|
| Thickness (mm) |
Width (m) |
Length (m) |
Average Temperature 70℃ {Average Temperature 20℃} |
||
| 80 100 |
50, 75, 100 | 1 | 1 | 0.052 {0.040} or lower |
600 or higher |
※ Actual product may seem different from the image, please contact the sales staff for the details.

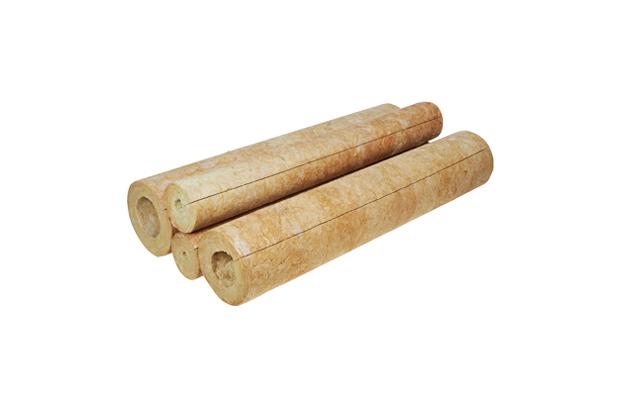

Mineral Wool Pipe Cover had forming process of making mineral wool into cylindrical shape, and has insulation performance, heat/humidity resistance, processability and flexibility.
Features
- Easy construction.
- Light but excellent in insulation/heating.
Application
- Maintenance, sanitary arrangements, heating/insulation of piping
- Heating/Insulation of water pipe
- Fireproof zone, etc.
General Size and Properties
| Density (kg/㎥) | Thermal Conductivity W/mK | Heat Shrinking Temp. (℃) |
|---|---|---|
| Average Temperature 70℃ {Average Temperature 20℃} |
||
| 100 ~ 150 | 0.044 {0.036} or lower |
600 or higher |
※ Properties Standard : KS L 9102
Thermal Conductivity Reference
※ Result of Thermal Conductivity Measurement at High Temp. (100℃, 600℃)
Product Size
| Pipe Cover Size | Pipe Cover Inner Diameter (mm) |
Thickness (mm) | |||||
|---|---|---|---|---|---|---|---|
| A | B | 30 | 40 | 50 | 65 | 75~150 | |
| 15 | 1/2 | 22 | O | O | O | O | O |
| 20 | 3/4 | 27 | O | O | O | O | O |
| 25 | 1 | 34 | O | O | O | O | O |
| 32 | 1 1/4 | 43 | O | O | O | O | O |
| 40 | 1 1/2 | 49 | O | O | O | O | O |
| 50 | 2 | 61 | O | O | O | O | O |
| 65 | 2 1/2 | 76 | O | O | O | O | O |
| 80 | 3 | 89 | O | O | O | O | O |
| 100 | 4 | 114 | O | O | O | O | O |
| 125 | 5 | 140 | O | O | O | O | O |
| 150 | 6 | 165 | O | O | O | O | O |
| 200 | 8 | 216 | X | O | O | O | O |
| 250 | 10 | 267 | X | O | O | O | O |
| 300 | 12 | 319 | X | O | O | O | O |
| 350 | 14 | 356 | X | O | O | O | O |
| 400 | 16 | 406 | X | O | O | O | O |
| 450 | 18 | 457 | X | O | O | O | O |
| 500 | 20 | 508 | X | O | O | O | O |
(Length 1000mm)
※ Available to produce products of 500 ~ 800mm, please contact the person in charge for the order.
Product size is 30~150mm, and available to produce in 5mm unit.
※ Actual product may seem different from the image, please contact the sales staff for the details.
Byucksan Mineral Wool for panel core uses mineral wool from hot-dip calcium silicate ore, and used as core material of sandwich panel which requires fireproof function with its strong heat resistance that does not burn easily from fire.
Features
Core material of sandwich panel which requires fireproof function
General Size
| Standard Size | Related Standard | |||
|---|---|---|---|---|
| Density (kg/㎥) |
Thickness (mm) |
Width (m) |
Length (m) |
|
| 90 or more | 72 80 84 |
1 | 2 | KS L 9102 KS L 9016 |
※ Please contact the person in charge for the other sizes. (Prohibited to use other than its usage.)
Properties
| Thermal Conductivity W/mk | Heat Shrinking Temp. (℃) |
|---|---|
| Average Temperature 70℃ | |
| 0.044 or lower | 600 or higher |
※ Actual product may seem different from the image, please contact the sales staff for the details.
Loose Wool packs mineral wool in fibrosis state(granule type), usable to fit to location and size of the working site, and is excellent in heating/sound absorption.
Best product with fiber thickness of around 4㎛, and particle content (500㎛ or more) of 2% or less.
Features
- Fireproof zone
- Raw material of mineral wool sound absorption ceiling system
- Insulation system for semi-wet spray construction method of house ceiling/wall, etc.
- Other parts difficult to construct with mat or board
General Size and Properties
| Standard Density(Kg/㎥) | Thermal Conductivity W/mK | Heat Shrinking Temp. (℃) |
|---|---|---|
| 70℃ | ||
| 40~150 (according to bulk density at use) |
0.044 or lower | 650 or higher |
Raw Material Mixing Ratio
| Usage | Loose Wool | Cement |
|---|---|---|
| For insulation | 1 | 0.28 |
| For sound absorption, condensation prevention | 1 | 0.3 |
※ Actual product may seem different from the image, please contact the sales staff for the details.

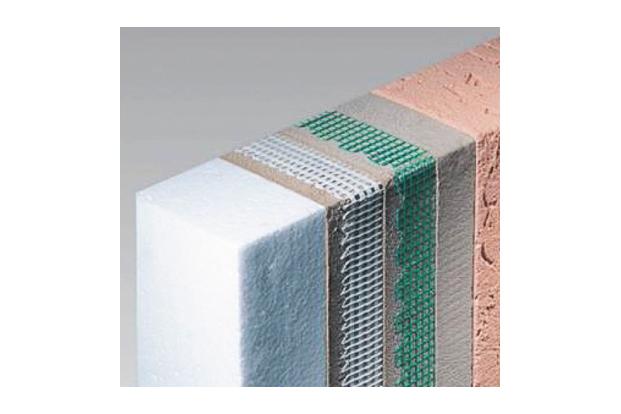

Heating insulation materials for plastering is the product attaching various surface materials to mineral wool, and processed as aiming for fast construction, labor elimination and homogenization.
Features
- Easy construction.
- No additional dampproof or finishing materials required.
- Diverse sizes.
- Economical.
Application
- Construction (heating insulation materials, sound absorption materials, fire resistance materials of wall, ceiling, floor, etc.)
- Facility (heating insulation materials, sound absorption materials of duct, piping, facility, etc.)
Raw Material
| Product Name | Mineral Wool |
| Mineral Wool Felt | |
| Mineral Wool Pipe Cover |
표면가공재
| ALGC | Aluminum - Glass Cloth |
| ALK | Aluminum - Kraft |
| ALPY | Aluminum - PVC Yarn |
| GC | Glass Cloth |
※ Other surface processed materials are producible by the order.
※ Actual product may seem different from the image, please contact the sales staff for the details.
Super Wool is Byucksan’s own product which is officially certified from domestic/foreign certification organizations including Lloyd's Classifications as fireproof insulation system for high-temperature developed for industry and ships. Especially, Super Wool is appropriate for all kinds of insulation facility for industrial facility and ship areas, and fireproof materials of ships and power plants.
Features
- Grade 1 incombustible material of excellent fireproof function with high heat resistance.
- Excellent processability with great flexibility as fiber material.
- Excellent in high-temperature insulation, sound absorption, humidity/weather resistance performance.
Application
- For industrial use
Economic and ideal high-temperature non-flammable insulation system i.e. annealing furnace for non-ferrous metals, heat treating furnace, drying furnace, baking furnace, insulating materials of power plant. For marine use
- For marine use
Acquired A-Class Bulkhead&Deck cert. by SOLAS (Safety Of Life At Sea) and Non-Combustible Material cert. by IMO Resolutions.
