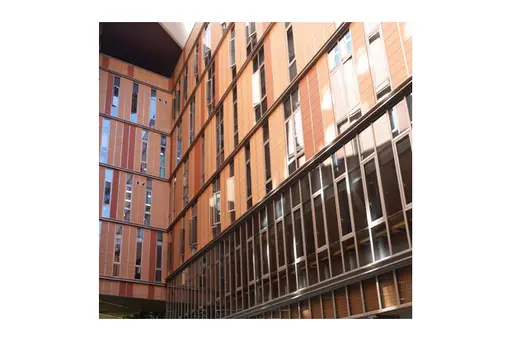

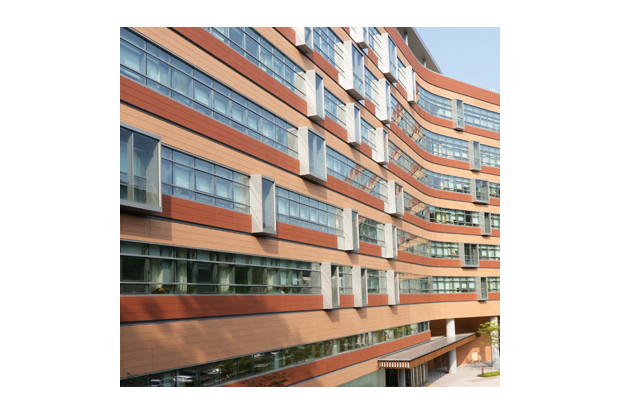

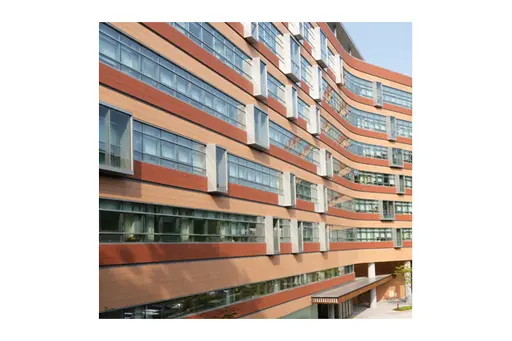

Exterior System of Nature - Byucksan TERASOLID
Introduction
Terasolid is strong in impact as baking pure clay without harmful chemicals with temperature of 1200โ or higher, has no discoloration, contraction expansion, distortion of panel, and provides modern and dignifying design as its color and texture are natural and well harmonized with metal and concrete exterior systems.
Features
Terasolid System
Terasolid system is an epoch-making patent system of stainless hardware system that could shorten construction period and reduce construction expenses by installing stainless clip.
โป Patent No.10-1334320 [Teracotta panel Fixture of Building]
Color
โป The colors above may be different from the actual colors.
โป Please contact the sales staff for the other colors.

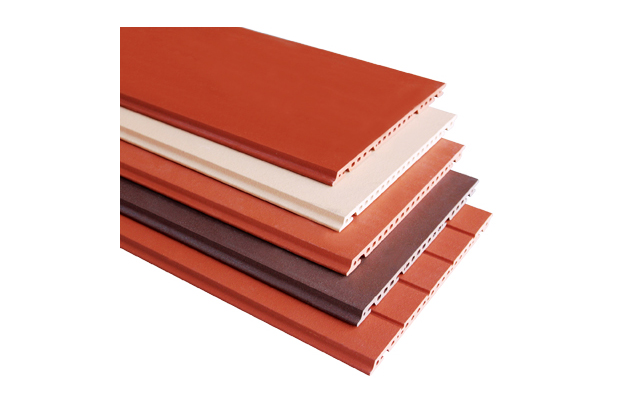

Size of Terasolid
| Part Name | Size | Thickness (T) | Height Width (H) |
Length | Shape |
|---|---|---|---|---|---|
| TERASOLID | FLAT 16 | 16 | 200 300 400 |
600 900 1,200 |
 |
| FLAT 20 | 20 | 200 300 400 |
 |
||
| FLAT 24 | 24 | 200 300 400 |
 |
||
| TRENCH 16 | 16 | 200 300 400 |
 |
||
| TRENCH 20 | 20 | 200 300 400 |
 |
||
| TRENCH 24 | 24 | 200 300 400 |
 |
||
| (Unit : mm) | |||||
โป Please contact the person in charge as Terasolid may have color difference depending on the size.
| Item | Unit | Specific Standard |
|---|---|---|
| Water Absorption Rate | 3% < E < 6% (Unglazed Tiles, except glazed tiles) | ISO 10545-3 / EN99 / KS L 1001 |
| Fracture Strength | 100N/cm or higher | KS L 1001 |
| Breaking Strength | Higher than 2.5kn | ISO 10545-4 |
| Bending Breaking Load | Higher 2,500N | KS F 3510 |
| Abrasion Resistance | lower than 393ใ (Unglazed Tiles) | ISO 10545-6 / EN154 |
| 0.1g or lower | KS L 1001 | |
| Resistance to Thermal Impact | Resistant | ISO 10545-9 / EN104 |
| Moisture Expansion | 0.06% or lower | ISO 10545-10 |
| Frost Resistance | Resistant | ISO 10545-12 / EN202 / KS L 1001 |
| Stain Resistance | Resistant | ISO 10545-14 / EN122 |
| Acid Resistance | N/A | KS L 1001 / ISO 10545-13 |
| Alkali Resistance | N/A | KS L 1001 / ISO 10545-13 |
Detailed Drawing of Terasolid
โป The specification of subsidiary hardwares may be changed depending on the site conditions.
