Eco-friendly Non-Asbestos Extrusion Molding Cement Panel
Introduction
BACE is abbreviation of Byucksan Autoclaved Cement Extrusion, which is the assembly type panel with light but high strength, and beautiful surface by extrusion molding cement as the main raw material, and steam curing under high temperature (180℃) and high pressure (10 atm).
Certificates
Application

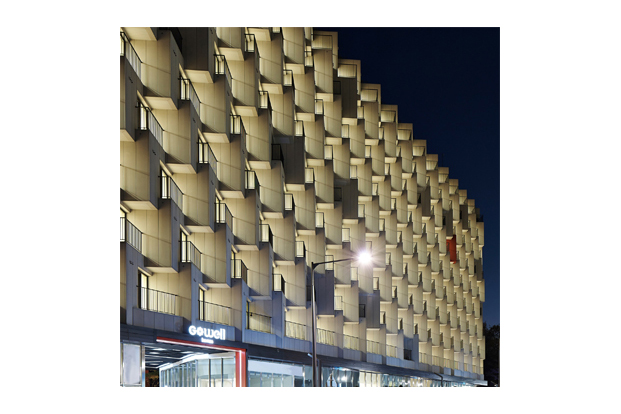

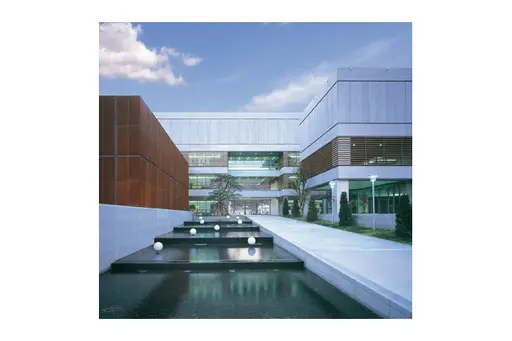

For construction : Intelligent buildings i.e. exterior wall, interior wall, floor, partition, stairs, etc. of building
For sound insulation : Reflective sound insulation plate for expressway, national highway, railway
Features

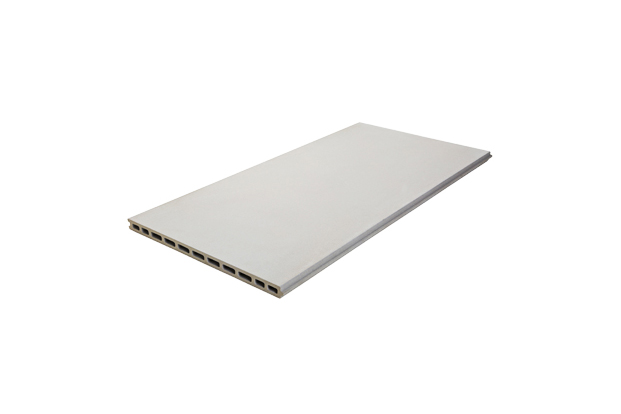

Flat Type
| Item | Shape of Cross Section | Standard Width (mm) |
Maximum Length (mm) |
Weight | Application | |
|---|---|---|---|---|---|---|
| kg/m | kg/m² | |||||
| BN-3550 |   |
500 | 2,700 | 19.74 | 40 | Exterior/ Interior/ Floor |
| BN-3560 |   |
600 | 2,700 | 23.12 | 39 | Exterior/ Interior/ Floor |
| BN-5050 |   |
500 | 4,000 | 24.50 | 49 | Exterior/ Interior/ Floor |
| BN-5060 |   |
600 | 4,000 | 30.52 | 51 | Exterior/ Interior/ Floor |
| BN-6050 |   |
500 | 5,000 | 29.50 | 59 | Exterior/ Interior |
| BN-6060 |   |
600 | 5,000 | 33.70 | 56 | Exterior/ Interior |
Stripe Type
| Item | Shape of Cross Section | Standard Width (mm) |
Maximum Length (mm) |
Weight | Application | |
|---|---|---|---|---|---|---|
| kg/m | kg/m² | |||||
| BNST-5060 |   |
600 | 4,000 | 29.40 | 49 | Exterior/ Interior |
Rib Type
| Item | Shape of Cross Section | Standard Width (mm) |
Maximum Length (mm) |
Weight | Application | |
|---|---|---|---|---|---|---|
| kg/m | kg/m² | |||||
| BNS-5050 |   |
500 | 4,000 | 29.50 | 49 | Exterior/ Interior/ Sound Proof Wall |
Pine board patterned BACE panel
| Item | Shape | Standard Width (mm) |
Maximum Length (mm) |
Weight | Application | |
|---|---|---|---|---|---|---|
| kg/m | kg/m² | |||||
| Pine board patterned (30T) |  |
600 | 2,400 | 24.6 | 41 | Exterior/ Interior |
BNEX
| Item | Shape |
|---|---|
| BNEX-3550 |   Producible up to 35T, 50T, maximum length, and available to adjust cone distance and numbers. (*Production upon agreement) Shape and size of cone : Ø30 / Ø40mm Depth : 3mm |
| BNEX-3560 | |
| BNEX-5050 | |
| BNEX-5060 |
Corner Type
| Item | Shape of Cross Section | Standard Width (mm) |
Maximum Length (mm) |
Weight kg/m |
Application |
|---|---|---|---|---|---|
| L-145 |   |
60×145 | 4,000 | 10.73 | Exterior/Interior/ Corner/Lintel |
| L-190 |   |
60×190 | 4,000 | 12.70 | Exterior/Interior/ Corner/Lintel |
| L-300 |   |
60×292 | 4,000 | 17.50 | Exterior/Interior/Corner/ Lintel/Top beam/Stair |
| L-430 |   |
60×430 | 5,000 | 25.00 | Exterior/Interior/Corner/ Lintel/Top beam/Stair |
| L-600 |   |
60×592 | 5,000 | 35.00 | Exterior/Interior/Corner/ Lintel/Top beam |

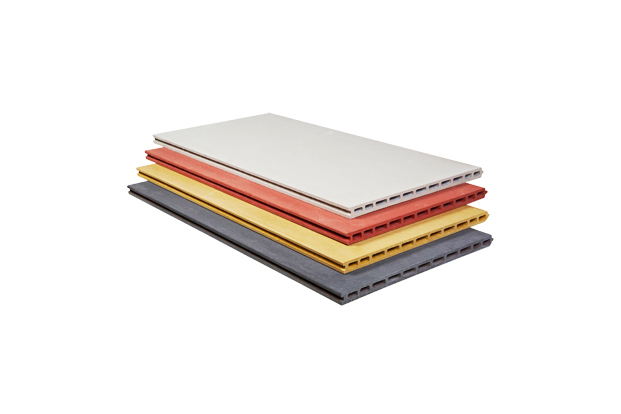

Color Panel
| Item | Color |
|---|---|
| Flat Type | Red, black, yellow (For size and length, additional agreement is required) |
※ Standard size of BACE panel can be changed without a notice, and may be changed according to the site conditions.
※ Please avoid the use on exterior floor where has frequent contact with moisture. (This may cause surface contamination and discoloration.)
※ Colors of BACE panel may differ as using natural ores as its raw material.
※ Corner type BACE panel is registered to Korean Intellectual Property Office for design, and protected by the “Design Protection Act”.
Features of BACE Panel
① Designed to have beautiful space creating by improving design (appearance design) of product through chamfering of BACE panel corner.
② Secure clear and consistent surface through sanding (surface polishing) treatment on BACE panel surface.
| Item | Test | Unit | Standard | Note |
|---|---|---|---|---|
| Weight | Specific Gravity | g/cm³ | 2.0 or lower | KS F 4735 |
| Physical Performance | Bending Strength | N/mm² | 14.0 or higher | KS F 4735 |
| Compressive Strength | N/mm² | 39.2 or higher | — | |
| Freezing Tolerance Fusion | — | No delamination or change in appearance | KS F 4735 | |
| Water-related Properties | Absorption Rate | % | 18 or lower | KS F 4735 |
| Water Content Rate | % | 8 or lower | — | |
| Length Change Rate by Absorption | % | 0.12 or lower | KS F 4735 | |
| Sound Blocking | Sound Blocking | Rw | 24 or higher | KS F 4735 |
| Maximum Deflection Amount | mm | Elasticity deflection : 50 or lower, Permanent Residual Deflection : LA/500 or lower |
KS F 4735 | |
| Load Carrying Degree | kPa | Ⅰ(1970mm) : 3.4 or higher Ⅱ (3970mm) : 2.8 - 3.4 |
KS F 4735 | |
| Impact | — | No penetration | KS F 4735 |
Horizontal Installation
Horizontal Installation Method
Vertical Installation
Vertical Installation Method
