Lowest Thermal Conductivity among KS Organic Insulation System
Rigid Polyurethane Foam Insulation System
Introduction
Flexible application of insulation system is required as energy saving becomes an issue of the world, insulation regulation from construction law gets strengthened.
Tech Board can supplement insulation feasibility anywhere with better thermal conductivity compared to other commercial construction insulating materials.
Certificates
Application

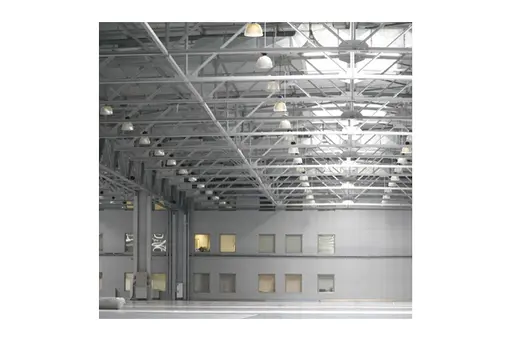

Construction area : Insulating material to ceiling, wall, floor, etc. of all buildings
Other areas : Insulating material to automobile, vessel, freezing/cooling storage, etc.
Features
Type
| Type | Description | Characteristics | |
|---|---|---|---|
| Insulation Plate Type 1 | No.1 | Plate shaped insulation without foamed surface material with raw materials of polyisocyanate, polyol and blowing agent | High density |
| No.2 | Mid density | ||
| No.3 | Low density | ||

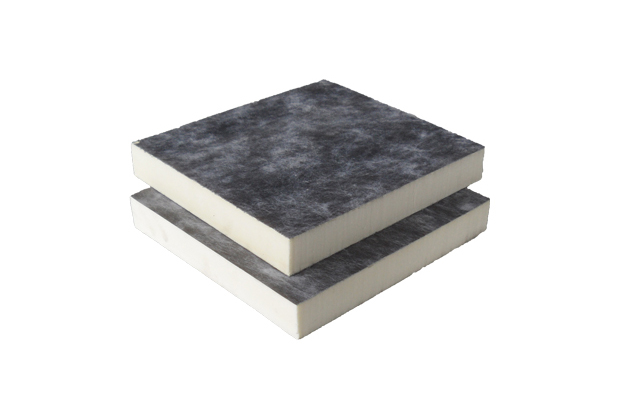

| Insulation Plate Type 2 | No.1 | Plate shaped insulation attaching surface material formed in sandwich shape by self-adhesion by blowing between surface materials with raw materials of polyisocyanate, polyol and blowing agent | High density |
| No.2 | Mid density | ||
| No.3 | Low density | ||
Size
| (Unit: mm) | |||
|---|---|---|---|
| Type | 20 ~ 45 | 50 ~ 120 | 125 or higher |
| Thickness Tolerance | ±2 | ±3 | Followed by agreement |
| Width Tolerance | 1,000 ± 5 | ||
| Length Tolerance | 1,800 ~ 3,100 ± 5 (by each 10mm) | ||
โป 1. Standard size : Thickness X Width X Length = Thickness X 1000 X 2000
โป 2. Size of the ordered goods may be defined by the agreement between people in charge of undertake/delivery. The tolerance at the time shall be followed by the table above
| Type | Apparent Density(kg/ใฅ) | Thermal Conductivity (W/m·K) | Bending Strength (N.ใ ) | Compressive Strength (N/ใ ) | Absorption Amount (g/100ใ ) | Combustibility | |
|---|---|---|---|---|---|---|---|
| Insulation Plate Type 1 | No.1 | 45 or higher | 0.024 or lower | 35 or higher | 30 or higher | 3.0 or lower | Combustion time shall be within 120 seconds, and the combustion length shall be 60mm or less. |
| No.2 | 35 or higher | 0.024 or lower | 25 or higher | 20 or higher | |||
| No.3 | 25 or higher | 0.025 ์ดํ | 15 or higher | 10 or higher | |||
| Insulation Plate Type 2 | No.1 | 45 or higher | 0.023 or lower | 35 or higher | 15 or higher | 3.0 or lower | - |
| No.2 | 35 or higher | 0.023 or lower | 25 or higher | 10 or higher | |||
| No.3 | 25 or higher | 0.024 or lower | 15 or higher | 8 or higher | |||
Construction Order and Application
