Introduction
Byucksan Glass Wool is a heating, insulating, cooling, sound absorbing exclusive product for construction industry and households produced with the rotation method which is developed by Byucksan, the eco-friendly construction material company, for the first time in Korea. It helps more economical and convenient construction.
Especially, it is eco-friendly construction material which reduced formaldehyde emission unbelievably, and appropriate to Fโโโโ standard, the best grade of construction material formaldehyde emission relates of Ministry of Economy, Trade and Industry of Japan and Japanese Industrial Standards.
Certificates
Application
For houses (ceiling, wall, floor), general construction, industry
Features
Application
General construction, for panel core, building, automobile, vessel, sound facility, etc.

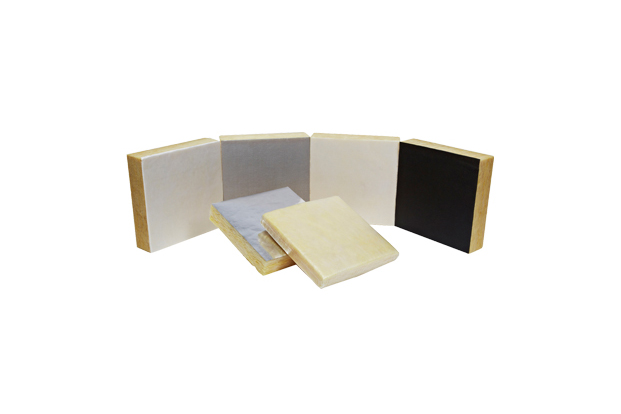

Board Size and Properties
| Product No. | Density (kg/ใก) |
Standard Size | Thermal Conductivity W/m•k |
Heat Shrinking Temp. (โ) |
Related Standard (KS) | ||
|---|---|---|---|---|---|---|---|
| Thickness (mm) |
Width (m) |
Length (m) |
KS Standard | ||||
| 20±5โ | |||||||
| BGM - 32 | 32 | 50 | 1 | 2 | 0.036 or lower | 300 or higher | L 9102 (2011) |
| BGM - 40 | 40 | 50 | 1 | 2 | 0.035 or lower | 350 or higher | |
| BGM - 48 | 48 | 50 | 1 | 2 | 0.034 or lower | ||
| BGM - 64 | 64 | 50 | 1 | 2 | 0.034 or lower | 400 or higher | |
| BGM - 80 | 80 | 50 | 1 | 2 | 0.034 or lower | ||
โป For other special size and products with attachment, order production is available upon agreement on production availability.
โป Attachment : Silver foil, PVC, etc.
Application
For houses (ceiling, wall, floor)/general construction, PC

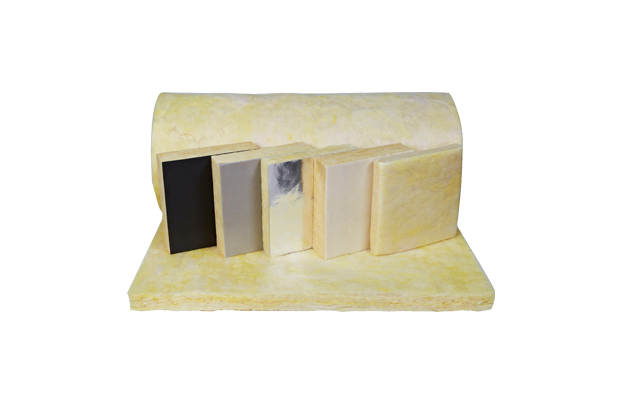

Mat Size and Properties
| Product No. | Density (kg/ใก) |
Standard Size | Thermal Conductivity W/m·k |
Heat Shrinking Temp. (โ) |
Related Standard (KS) |
||
|---|---|---|---|---|---|---|---|
| Thickness (mm) |
Width (m) |
Length (m) |
KS Standard | ||||
| 20±5โ | |||||||
| BGM - 24 | 24 | 25 | 1 | 20 | 0.037 or lower | 300 or higher | L 9102 (2011) |
| 50 | 1 | 10 | |||||
| BGM - 32 | 32 | 50 | 1 | 10 | 0.036 or lower | 300 or higher | L 9102 (2011) |
โป For other special size and products with attachment, order production is available upon agreement on production availability.
โป Attachment : Silver foil, PVC, etc.

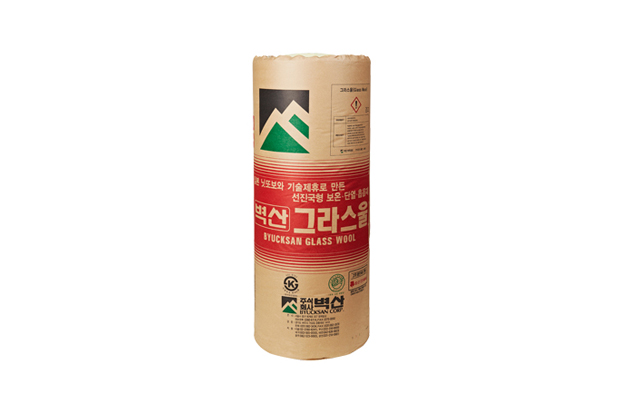

Sealed Product
Product sealed after covering with polyethylene vinyl to general mat board product.
Features
- Convenient handling of handler (eco-friendly)
- Prevent humidity while constructing outer wall
- Attached product and vinyl, convenient to construct as vinyl is not separated from the product during construction or cutting
Application
Apartment wall, insulation of general building
Mat Size and Properties
| Item | For Boards | For Roll Products | |
|---|---|---|---|
| Size | Width (mm) | 900 ~ 1200 | 900 ~ 1200 |
| Length (mm) | 900 ~ 3000 | 5000 ~ 20000 | |
| Thickness (mm) | 25 ~ 150 | 25 ~ 1500 | |
| Density(kg/ใฅ) | 24 ~ 32 | 16 ~ 24 | |
| Size after Compression | - | 430 Ø | |
| Vinyl Wrap | Vinyle Specification | 0.02mm | 0.03mm |
| Type | 4-side sealing, 6-side sealing | 4-side sealing, 6-side sealing | |
| Thermal Conductivity (20±5โ) | W/ใก·K | 0.034 ~ 0.037 | 0.034 ~ 0.044 |
โป For other special size and products with attachment, order production is available upon agreement on production availability.
Low Noise/Insulation Product
Product which attached glass cloth on one side of Glass Wool Board to reduce noises from sound facility, cinema, gym, maintenance room, etc.
Application
Place which requires considerable sound function and insulation
Used as interior system of (factory, machinery room, computer room, sound room, telephone operating room, gym, assembly room, etc.)
Construction Method
- Mark line on the wall where G/C Board will be constructed to fit to G/C Board size.
- Mark position to attach fixing pin (support pin) on the wall where G/C Board will be constructed.
- Attach fixing pin (support pin) on the marked position on the wall with adhesive. (Wait 24 hours until adhesive dries completely, then install them after 24 hours.)
- When adhesive dries completely, insert G/C Board to fixing pin align with the marked line on the wall.
- Insert washer to tip of support pin.
Board Size and Properties
| Thickness (mm) | Width/Length (mm) | Density(kg/ใฅ) | NRC(48K basis) |
|---|---|---|---|
| 25 ~ 100 | 1000 X 2000 | 48 / 64 / 80 | 0.81 or higher |
โป For other special size and products with attachment, order production is available upon agreement on production availability.
Glass Wool Panel (Panel Core material)
Noninflammable/Insulating Sandwich Panel (Panel Core Material)
Fibrosis silica (sand) which is the raw material for glass by using high-temperature hot-dip and high-speed rotation, and use as heating, insulation and sound absorption materials as creating fine continuous pore with artificial mineral fiber formed in a consistent form. Non-flammable panel available for fireproof structural construction with no toxic gas generation during fire and almost no fire expansion.
Application
- Big-size mart, house/commercial/residence
- Factory/Storage, all buildings with fireproof area and danger of fire
Board Size and Properties
| Density (kg/ใฅ) |
Standard Size | Thermal Conductivity W/m·k |
Heat Shrinking Temp. (โ) |
Related Standard (KS) |
||
|---|---|---|---|---|---|---|
| Thickness (mm) |
Width (m) |
Length (m) |
KS Standard | |||
| 20±5โ | ||||||
| 48 | 72 84 100 |
1 1.1 |
2 2.5 |
0.034 or lower | 350 or higher | L 9102 (2011) |
| 64 | 72 84 100 |
1 1.1 |
2 2.5 |
0.034 or lower | 400 or higher | |
| 70 | 72 84 100 |
1 1.1 |
2 2.5 |
0.034 or lower | ||
โป For other special size and products with attachment, order production is available upon agreement on production availability.
Eco-Friendly Glass Wool without Formaldehyde Emission
Glass Wool Eco provides clean air quality and refreshing environment as eco-friendly product without formaldehyde (HCHO) emission, which is internal air pollutant.
| HB Mark HCHO (Formaldehyde) Emission Standard | |
|---|---|
| Excellent HB โงโงโงโงโง | Less than 0.015 |
| Great HB โงโงโงโง | 0.015 ~ 0.05 |
| Glass Wool Eco | Not detected |
โป (Unit:mg/ใกh)
Application
- For houses (ceiling, wall, floor)
- General construction
Mat Size and Properties
| Product No. | Density (kg/ใก) |
Standard Size | Thermal Conductivity W/m·k |
Heat Shrinking Temp. (โ) |
Related Standard (KS) |
||
|---|---|---|---|---|---|---|---|
| Thickness (mm) |
Width (m) |
Length (m) |
KS Standard | ||||
| 20±5โ | |||||||
| BGM - 24 | 24 | 35 | 1 | 20 | 0.037 or lower | 300 or higher | L 9102 (2011) |
| 50 | 1 | 10 | |||||
| BGM - 32 | 32 | 50 | 1 | 10 | 0.036 or lower | 300 or higher | L 9102 (2011) |
โป For other special size and products with attachment, order production is available upon agreement on production availability.
Glass Wool Construction Method (General Case)
|
Concrete Block Bearing Wall |
Brick and Block Double Wall |
|
Precast Concrete Plate |
Metal and Glass Curtain Wall |
|
Wall/Ceiling Attachment Detail |
Floor/Baseboard/Wall Attachment Detail |
