Glass Wool for Exterior Insulation, Strong in Humidity by Improving Water Repellency
Introduction

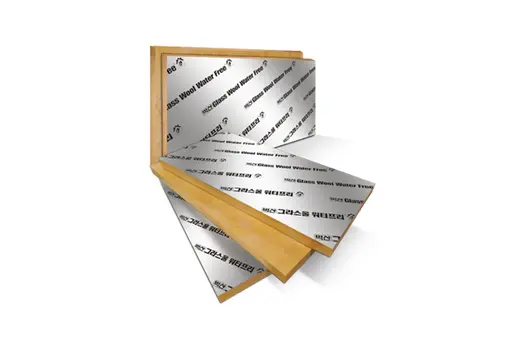

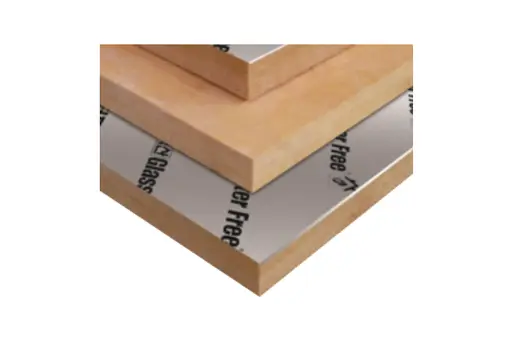

Byucksan Glass Wool Water-Free is developed to minimize heat loss as non-organic insulation system exclusive for exterior insulation which minimized absorption and penetration during dry outer wall construction by improving water repellency of the previous Glass Wool product.
Certificates
Application
Outer wall, ceiling of building, Piloti ceiling
Features
| ITEM | Density(K) | Thermal conductivity(W/m*K) | Thickness(㎜) | Standard size(㎜) | |||
|---|---|---|---|---|---|---|---|
| BYUCKSAN | KS Standard | Min | Max | Width | Length | ||
| Waterfree Plus | 48 | 0.031 | 0.034 | 50 | 180 | 1000 | 2000 |
| 40 | 0.032 | 0.035 | 50 | 215 | 1000 | 2000 | |
| 32 | 0.032 | 0.036 | 50 | 250 | 1000 | 2000 | |
| Waterfree | 48 | 0.033 | 0.034 | 50 | 180 | 1000 | 2000 |
| 40 | 0.034 | 0.035 | 50 | 215 | 1000 | 2000 | |
※ Stadndard : KS L 9102
※ Special sized products are available upon discussion with sales staff
Install on Ceiling
Install on Piloti Ceiling
Install on Wall
Outer Wall Insulation Construction Order
|
01. Set base line/Drilling
|
02. Install bottom track (wall plug)
|
|
03. Set Water-Free position
|
04. Fix fastener (fastening tool)
|
|
05. Process Water-Free breaking joint
|
06. Fix joint fastener
|
|
07. Construct joint silver tape |
08. Construction completed |
※ When fixing Glass Wool Water-Free fastener, it is recommended to have 8ea/2㎡ or more. (Wall basis)
