- Capacity : 37.5 ~ 67.5 m3/h (50Hz, 2900rpm)

- Head : 37.5 ~ 64 m (50Hz, 2900rpm)

- Motor Output : 30 HP (22.5 kW)

- Inlet Size : 3 S

- Outlet Size : 2.5 S

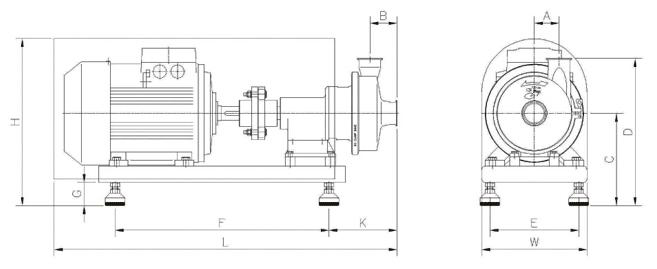

Dimensions

A: 75 mm, B : 82mm, C: 300mm, D: 527mm, E: 328mm, F: 730mm, G: 70mm, H: 550mm, K: 170mm, L: 1100mm, W: 388mm

Applications : Beverage, Dairy, Pharmaceutical, Water, etc.
