- Displacement : 625 cc/rev.

- Pressure : Max. 5.5 Bar

- Viscosity : Max. 5,000 cp

- Temperature : Max. 120 ℃

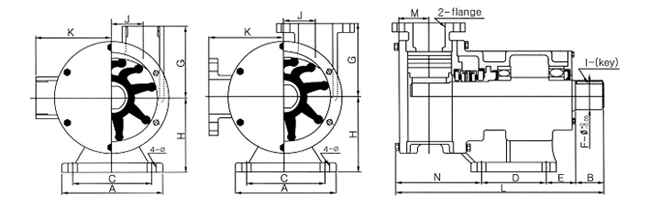

Dimensions

A: 190mm, B: 42mm, C: 140mm, D: 140mm, E: 68mm, F: 42mm, G: 120mm, H: 132mm, I: 12x8, J: 50mm, K: 160mm, L: 500mm, M: 85mm, N: 250mm, Inlet & Outlet Dia.: 100A Flange, Diameter for 4 Holes of Base: 13mm

Applications : Waste-Water, Chemical, Excretions, Sea-Water, Food, etc..
