- Displacement : 80.3 cc/rev.

- Pressure : Max. 5.5 Bar

- Viscosity : Max. 5,000 cp

- Temperature : Max. 120 ℃

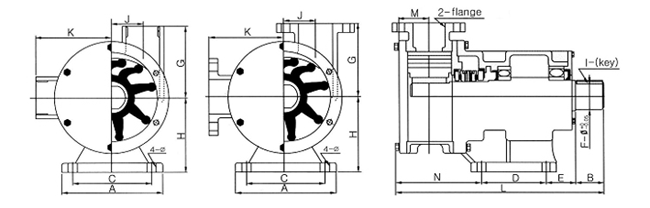

Dimensions

A: 100mm, B: 30mm, C: 70mm, D: 70mm, E: 37mm, F: 22mm, G: 75mm, H: 102mm, I: 7x7, J: 42mm, K: 78mm, L: 273mm, M: 41mm, N: 95mm, Inlet & Outlet Dia.: 32A-PT, Diameter for 4 Holes of Base: 11mm

Applications : Waste-Water, Chemical, Excretions, Sea-Water, Food, etc..
