Displacement : 300 cc/rev.

Pressure : Max. 5.5 Bar

Viscosity : Max. 5,000 cp

Temperature : Max. 120 ℃

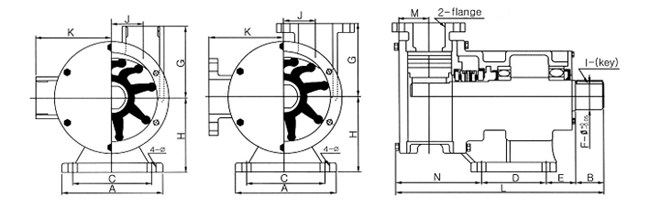

Dimensions

A: 137mm, B: 54mm, C: 112mm, D: 56mm, E: 72mm, F: 32mm, G: 118mm, H: 100mm, I: 10x8, J: 12mm, K: 124mm, L: 356mm, M: 60mm, N: 114mm, Inlet & Outlet Dia.: 2.5S, Diameter for 4 Holes of Base: 11mm

Applications : Dairy, Beverages, Jam, Paste, etc..
