Displacement : 210 cc/rev.

Pressure : Max. 5 Bar

Viscosity : Max. 5,000 cp

Temperature : Max. 120 ℃

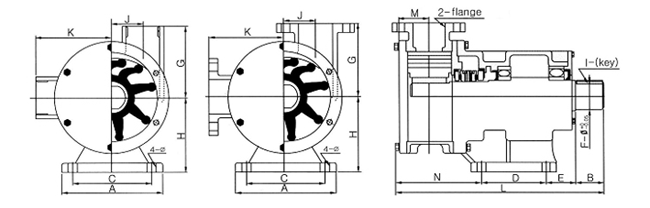

Dimensions

A: 137mm, B: 38mm, C: 112mm, D: 56mm, E: 72mm, F: 28mm, G: 118mm, H: 100mm, I: 8x7, J: 6mm, K: 118mm, L: 330mm, M: 55mm, N: 109mm, Inlet & Outlet Dia.: 2S, Diameter for 4 Holes of Base: 11mm

Applications : Dairy, Beverages, Jam, Paste, etc..
