Displacement : 2,077 cc/rev.

Pressure : Max. 15 Bar

Viscosity : Max. 1,000,000 cp

Temperature : Max. 200 ℃

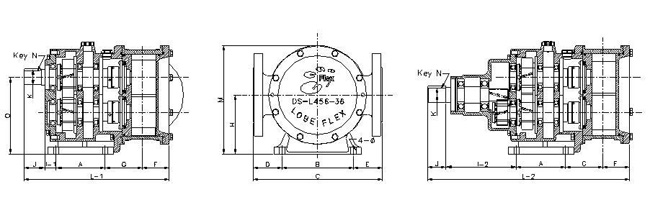

Dimensions

A: 180 mm, B: 210mm, C: 440mm, D: 115mm, E: 115mm, F: 89mm, G: 110mm, H: 200mm, I-1: 48mm, I-2: 224mm, J: 70mm, K: 52mm, L-1: 497mm, L-2: 673mm, M: 373mm, N: 16x12, O: 265.2mm, Diameter for 4 Holes of Base: 17mm

Applications : Chemicals, Oil, Waste Water, Excretions, etc..
