Displacement : 715 cc/rev.

Pressure : Max. 15 Bar

Viscosity : Max. 1,000,000 cp

Temperature : Max. 200 ℃

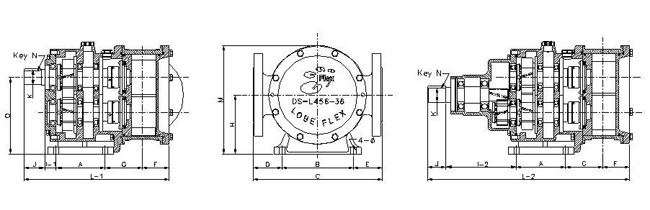

Dimensions

A: 135 mm, B: 165mm, C: 360mm, D: 92mm, E: 92mm, F: 68mm, G: 100mm, H: 160mm, I-1: 51mm, I-2: 189mm, J: 60mm, K: 38mm, L-1: 409mm, L-2: 547mm, M: 293mm, N: 10x8, O: 213mm, Diameter for 4 Holes of Base: 13mm

Applications : Chemicals, Oil, Waste Water, Excretions, etc..
