- Displacement : 312 cc/rev.

- Pressure : Max. 15 Bar

- Viscosity : Max. 1,000,000 cp

- Temperature : Max. 200 ℃

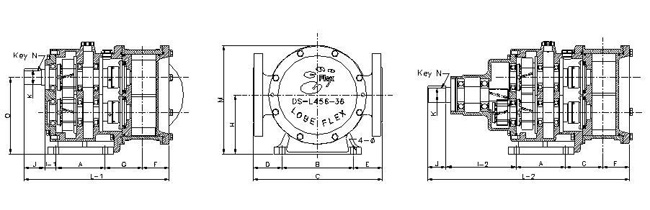

Dimensions

A: 110 mm, B: 140mm, C: 290mm, D: 65mm, E: 65mm, F: 52mm, G: 78mm, H: 132mm, I-1: 30mm, I-2: 156mm, J: 40mm, K: 32mm, L-1: 311mm, L-2: 437mm, M: 242mm, N: 10x8, O: 172mm, Diameter for 4 Holes of Base: 11mm

Applications : Chemicals, Oil, Waste Water, Excretions, etc..
