Displacement : 109 cc/rev.

Pressure : Max. 15 Bar

Viscosity : Max. 1,000,000 cp

Temperature : Max. 200 ℃

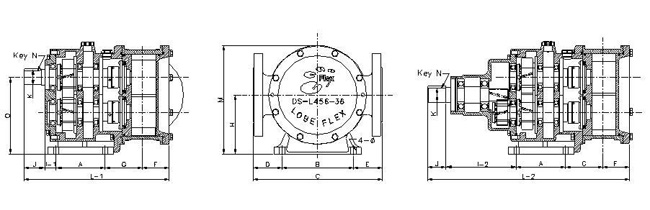

Dimensions

A: 100 mm, B: 100mm, C: 230mm, D: 55mm, E: 55mm, F: 40mm, G: 68mm, H: 100mm, I-1: 29mm, I-2: 127mm, J: 30mm, K: 22mm, L-1: 267mm, L-2: 365mm, M: 180mm, N: 8x7, O: 126.5mm, Diameter for 4 Holes of Base: 9mm

Applications : Chemicals, Oil, Waste Water, Excretions, etc..
