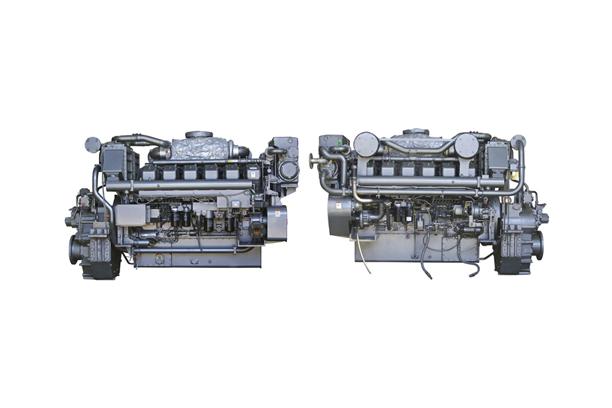

MITSUBISHI Marine Engine, MS12A2-T2MPTKL (1167/1920)
Features
| Model | MS12A2-T2MPTKL | ||
|---|---|---|---|
| Continous Rating Output (ps/rpm) | 1167/1920 | ||
| Type | 4-cycle, water cooled, direct injection type, diesel engine | ||
| Aspiration | Turbocharged with intercooler | Number of Cylinder | V-12 cylinders |
| bore (mm) | 150 | Stroke (mm) | 160 |
| Total Piston Displacement (ℓ) | 33.9 | Compression Ratio | 14.5:1 |
| Fuel Oil | ISO 8217DMX (Cetane number 45 or more) | Fuel Consumption (g/ps.h) | 165 |
| Lubricating system | Forced lubrication by gear pump | ||
| Lubricating oil | API service grade CD or higher | ||
| Cooling system | Thermostat controlled fresh water cooling by fresh water pump, heat exchanger and sea water pump | ||
| Fresh water pump type | Centrifugal pump | ||
| Sea water pump type | Rubber rotor pump | ||
| Starting system | Electric starting motor | ||
| Fuel Injection Pump | Bosch P type with fuel feed pump | ||
| Dry Weight (kg) | 4510 | ||
