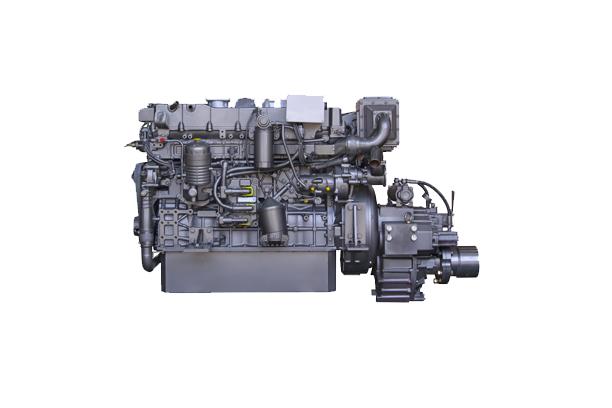

Hyundai Korea Marine Engine, CH6HAM (410ps/2000rpm)
Features
| Model | CH6HAM | ||
|---|---|---|---|
| Continous Rating Output | 410ps/2000rpm | ||
| Type | 4 Cycle, In-line, Water cooled, Diesel engine, Direct injection | ||
| Aspiration | Turbo Charged with Intercooler | Number of Cylinder | 6 |
| Piston bore (mm) | 122 | Piston Stroke (mm) | 142 |
| Total Piston Displacement (I) | 9.96 | Compression Ratio | 17.0:1 |
| Fuel Oil | Diesel | Fuel Consumption (g/ps.h) | 150 |
| Lubricating system | Forced lubrication by engine driven gear pump | ||
| Lubricating oil | API service grade CD class or higher | ||
| Cooling system | Indirect sea water cooling with Heat exchanger | ||
| Fresh water pump type | Centrifugal type driven by belt | ||
| Sea water pump type | Rubber impeller type driven by gear | ||
| Starting system | Electric starting moter (DC24V earth float type) | ||
| Fuel Injection Pump | EUI Type | ||
| Reduction Gear & Ratio | DMT150H (1.83, 2.09, 2.51, 3.08, 3.43) | ||
| Dry Weight (kg) | 1535 | ||
Drawing and size
Performance curve
