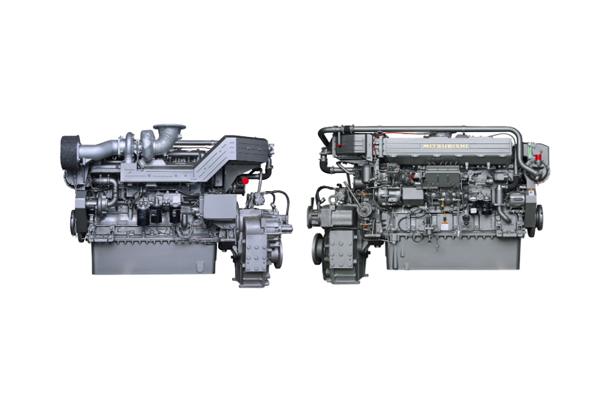

MITSUBISHI Marine Engine, MS6A3-T2MTK3L (760/1900)
Features
| Model | MS6A3-T2MTK3L |
|---|
| Continous Rating Output (ps/rpm) | 760/1900 |
|---|
| Type | 4-cycle, water cooled, direct injection, diesel engine |
|---|
| Aspiration | Turbocharged with intercooler | Number of Cylinder | In-line 6 cylinder |
|---|
| bore (mm) | 150 | Stroke (mm) | 175 |
|---|
| Total Piston Displacement (ℓ) | 18.56 | Compression Ratio | 14.5:1 |
|---|
| Fuel Oil | Diesel or Heavy oil | Fuel Consumption (g/ps.h) | 167 |
|---|
| Lubricating system | Forced lubrication by gear pump |
|---|
| Lubricating oil | API service grade CD |
|---|
| Cooling system | Thermostat controlled fresh water cooling by fresh water pump, heat exchanger and sea water pump |
|---|
| Fresh water pump type | Centrifugal pump |
|---|
| Sea water pump type | Rubber rotor pump |
|---|
| Starting system | Electric starting motor |
|---|
| Fuel Injection Pump | Bosch piston type |
|---|
| Dry Weight (kg) | 2000 |
|---|
