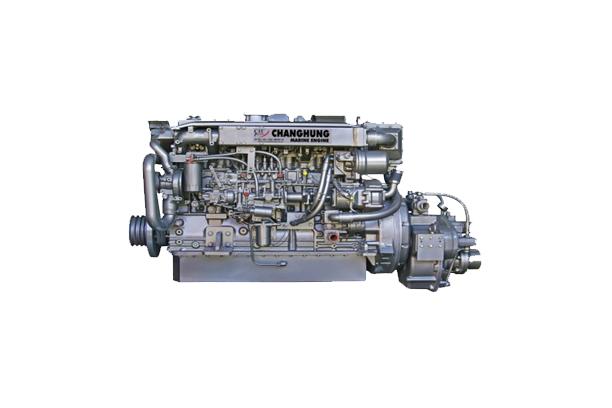

Hyundai Korea Marine Engine, CH6ACTI (335ps/2100rpm)
Features
| Model | CH6ACTI | ||
|---|---|---|---|
| Continous Rating Output | 335ps/2100rpm | ||
| Type | 4 Cycle, In-line, Water cooled, Diesel engine, Direct injection | ||
| Aspiration | Turbo Charged with Intercooler | Number of Cylinder | 6 |
| Piston bore (mm) | 130 | Piston Stroke (mm) | 140 |
| Total Piston Displacement (I) | 11.2 | Compression Ratio | 15.5:1 |
| Fuel Oil | Diesel | Fuel Consumption (g/ps.h) | 165 |
| Lubricating system | Forced lubrication by engine driven gear pump | ||
| Lubricating oil | API service grade CD class or higher | ||
| Cooling system | Indirect sea water cooling with Heat exchanger | ||
| Fresh water pump type | Centrifugal type driven by belt | ||
| Sea water pump type | Rubber impeller type driven by gear | ||
| Starting system | Electric starting moter (DC24V earth float type) | ||
| Fuel Injection Pump | Bosch Type | ||
| Reduction Gear & Ratio | DDMT140H (1.97, 2.57, 3.03, 3.46) | ||
| Dry Weight (kg) | 1480 | ||
Drawing and size
Performance curve
