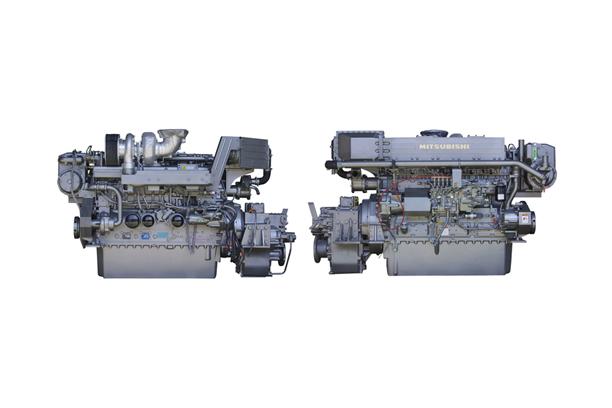

MITSUBISHI Marine Engine, MS6B3-T2MTK2L (609/2001)
Features
| Model | MS6B3-T2MTK2L | ||
|---|---|---|---|
| Continous Rating Output (ps/rpm) | 609/2001 | ||
| Type | 4-cycle, water cooled, direct injection, Intercooler type, diesel engine | ||
| Aspiration | Turbocharged with intercooler | Number of Cylinder | In-line 6 cylinder |
| bore (mm) | 135 | Stroke (mm) | 170 |
| Total Piston Displacement (ℓ) | 14.6 | Compression Ratio | 14.2:1 |
| Fuel Oil | ISO 8127 DMX (Cetane number 45 or more) | Fuel Consumption (g/ps.h) | 159 |
| Lubricating system | Forced lubricatin by gear pump | ||
| Lubricating oil | API service grade CF or higher | ||
| Cooling system | Thermostat controlled fresh water cooling by fresh water pump heat exchanger and sea water pump | ||
| Fresh water pump type | Centrifugal pump | ||
| Sea water pump type | Rubber rotot pump | ||
| Starting system | Electric starting motor | ||
| Fuel Injection Pump | Bosch type with fuel feed pump | ||
| Dry Weight (kg) | 2090 | ||
