Description
Vortex CNC Hexagon Specifications
| Model | Description |
|---|---|
| SMVCH60008M | Vortex CNC Hexagon 08CFM(580 BTU/h,147Kcal)Stainless Steel, Ducting Kit |
| SMVCH60010M | Vortex CNC Hexagon 10CFM(600 BTU/h,152Kcal)Stainless Steel, Ducting Kit |
| SMVCH60015M | Vortex CNC Hexagon 15CFM(1100 BTU/h,278Kcal)Stainless Steel, Ducting Kit |
| SMVCH60025M | Vortex CNC Hexagon 25CFM(2000 BTU/h,630Kcal)Stainless Steel, Ducting Kit |
| SMVCH60035M | Vortex CNC Hexagon 냉각기 35CFM(3500 BTU/h,882Kcal)Stainless Steel, Ducting Kit |

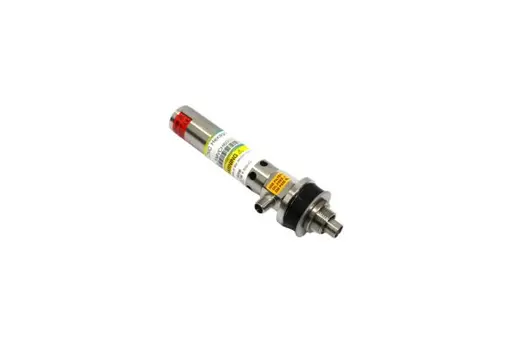

Vortex Hexagon CNC Cooler comes with 8CFM, 10CFM, 15CFM, 25CFM, 35CFM generators, which produce 580Btu/h (146Kal/h)~3500Btu/h (881Kal/h). All Vortex Hexagon CNC Coolers are made of Stainless Steel; it meets NEMA 4, NEMA 4X, and NEMA 12 ratings as IP 66 and IP55 for wash-down protection and resistance to oxidation and corrosion.
Vortex CNC Hexagon Efficiency
| Vortex CNC Hexagon Efficiency | |||||
|---|---|---|---|---|---|
| Model | Inlet pressure PSIG(bar) |
Air Consumption (ℓ/min) |
Cooling Capacity | ||
| BTU/h | Kcal/h | ||||
| SMVCH60008M | 100(7) | 220 | 580 | 147 | |
| SMVCH60010M | 100(7) | 280 | 600 | 152 | |
| SMVCH60015M | 100(7) | 420 | 1,100 | 278 | |
| SMVCH60025M | 100(7) | 700 | 2,500 | 630 | |
| SMVCH60035M | 100(7) | 990 | 3,500 | 882 | |
Type Nomenclature
