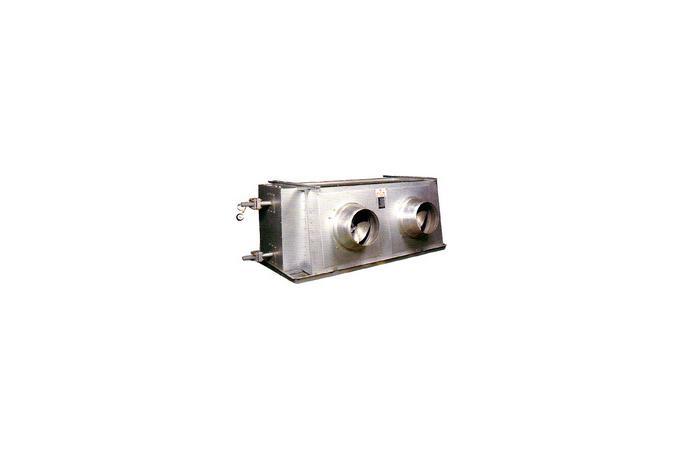

Unit cooler, Air cooling condenser, Cooling coil, Condenser and more
Easy assembly and disassembly of the motor
Appropriate to small, light weight unit cooler.
Separation type of the drain pan
Low noise level by 6 pole motor
High quality & efficiency
Size in accordance with ROW
|
ROW |
W |
W₁ |
|
6 |
870 |
900 |
|
8 |
970 |
1000 |
|
10 |
1040 |
1070 |
■ UNIT COOLER NPP-TYPE DIMENSION
|
MODEL |
L |
L' |
L" |
H |
REFRIGERANT |
DEFROST(WATER) |
||
|
In Let |
Out Let |
In |
Out |
|||||
|
NPP-084-R |
1540 |
1250 |
1550 |
1070 |
32A |
40A |
32A |
65A |
|
NPP-105-R |
1840 |
1550 |
1850 |
1070 |
32A |
40A |
32A |
65A |
|
NPP-126-R |
2140 |
1850 |
2150 |
1070 |
32A |
40A |
40A |
80A |
|
NPP-147-R |
2440 |
2150 |
2450 |
1070 |
40A |
50A |
40A |
80A |
|
NPP-168-R |
2440 |
2150 |
2450 |
1070 |
40A |
50A |
40A |
80A |
■ UNIT COOLER NPP-TYPE DIMENSION
|
MODEL |
COIL SPEC |
FIN PITCH |
FACE AREA |
TRANSFER AREA |
AIR VOLUME |
FAN |
MOTOR |
POLE |
AMPERE |
WEIGHT |
||
|
ROW |
E.L |
(mm) |
( m₂) |
( m₂) |
( m₃/min ) |
EA |
φ |
(KW) |
(P) |
(A) |
(KG) |
|
|
NPP-084-R |
6 |
1200 |
6.5 |
0.84 |
71 |
106.1 |
2 |
450 |
0.2 |
6 |
3.5/2 |
189 |
|
8.5 |
0.84 |
56.8 |
93.4 |
2 |
450 |
0.2 |
6 |
3.5/2 |
183 |
|||
|
8 |
1200 |
6.5 |
0.84 |
94.7 |
141.5 |
2 |
500 |
0.4 |
6 |
4.4/2.6 |
221 |
|
|
8.5 |
0.84 |
75.7 |
124.5 |
2 |
500 |
0.4 |
6 |
4.4/2.6 |
213 |
|||
|
10 |
1200 |
6.5 |
0.84 |
118.4 |
176.8 |
2 |
500 |
0.4 |
6 |
4.4/2.6 |
240 |
|
|
8.5 |
0.84 |
94.7 |
155.6 |
2 |
500 |
0.4 |
6 |
4.4/2.6 |
229 |
|||
|
NPP-105-R |
6 |
1500 |
6.5 |
1.05 |
88.8 |
132.6 |
2 |
450 |
0.2 |
6 |
3.5/2 |
220 |
|
8.5 |
1.05 |
71 |
116.7 |
2 |
450 |
0.2 |
6 |
3.5/2 |
212 |
|||
|
10 |
1500 |
6.5 |
1.05 |
148 |
221.1 |
2 |
550 |
0.4 |
6 |
4.4/2.6 |
274 |
|
|
8.5 |
1.05 |
118.4 |
194.5 |
2 |
550 |
0.4 |
6 |
4.4/2.6 |
262 |
|||
|
NPP-147-R |
6 |
2100 |
6.5 |
1.47 |
124.3 |
185.7 |
2 |
550 |
0.4 |
6 |
4.4/2.6 |
280 |
|
8.5 |
1.47 |
99.4 |
163.4 |
2 |
500 |
0.4 |
6 |
4.4/2.6 |
270 |
|||
|
8 |
2100 |
6.5 |
1.47 |
165.8 |
247.6 |
3 |
550 |
0.4 |
6 |
6.6/3.9 |
318 |
|
|
8.5 |
1.47 |
132.6 |
217.9 |
3 |
550 |
0.4 |
6 |
6.6/3.9 |
304 |
|||
|
10 |
2100 |
6.5 |
1.47 |
207.2 |
309.5 |
3 |
550 |
0.4 |
6 |
6.6/3.9 |
345 |
|
|
8.5 |
1.47 |
165.7 |
272.3 |
3 |
550 |
0.4 |
6 |
6.6/3.9 |
327 |
|||
|
NPP-168-R |
6 |
2100 |
6.5 |
1.68 |
142.1 |
212.2 |
3 |
550 |
0.4 |
6 |
6.6/3.9 |
312 |
|
8.5 |
1.68 |
113.6 |
186.8 |
3 |
550 |
0.4 |
6 |
6.6/3.9 |
300 |
|||
|
8 |
2100 |
6.5 |
1.68 |
189.5 |
283 |
3 |
550 |
0.4 |
6 |
6.6/3.9 |
328 |
|
|
8.5 |
1.68 |
151.5 |
249 |
3 |
550 |
0.4 |
6 |
6.6/3.9 |
316 |
|||
* Above model & specifications can be changed without notice.
