Description

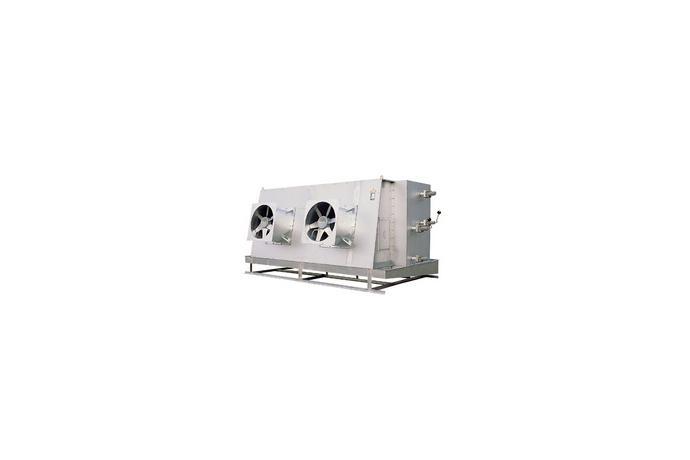

- Appropriate to middle,large unit cooler.
- Optimized efficiency by 4&6P motor.
- Easy installation to the ceiling & floor mounted.
- Easy maintenance for motor
- High quality & effiiency
W size in accordance with ROW
|
ROW |
W |
W₁ |
|
6 |
1040 |
1580 |
|
8 |
1130 |
1670 |
|
10 |
1120 |
1760 |
■ UNIT COOLER NPA-TYPE DIMENSION
|
MODEL |
L |
L' |
H |
REFRIGERANT |
DEFROST |
||
|
In Let |
Out Let |
In |
Out |
||||
|
NPA-120-R |
1900 |
1920 |
1390 |
40A |
50A |
40A |
65A |
|
NPA-144-R |
2200 |
2220 |
1390 |
40A |
50A |
40A |
65A |
|
NPA-168-R |
2500 |
2520 |
1390 |
40A |
50A |
40A |
65A |
|
NPA-192-R |
2800 |
2820 |
1390 |
50A |
65A |
50A |
80A |
|
NPA-216-R |
3100 |
3120 |
1490 |
50A |
65A |
50A |
80A |
|
NPA-240-R |
3400 |
3420 |
1490 |
50A |
65A |
50A |
80A |
|
NPA-264-R |
3700 |
3720 |
1490 |
50A |
80A |
65A |
100A |
|
NPA-288-R |
4000 |
4020 |
1490 |
50A |
80A |
65A |
100A |
■ UNIT COOLER NPA-TYPE DIMENSION
|
MODEL |
COIL SPEC |
FIN PITCH |
FACE AREA |
TRANSFER AREA |
AIR VOLUME |
FAN |
MOTOR |
POLE |
AMPERE |
WEIGHT |
||
|
ROW |
E.L |
(mm) |
( m² ) |
( m² ) |
( m³/min ) |
φ |
EA |
(KW) |
(P) |
(A) |
(KG) |
|
|
NPA-120-R |
8 |
1500 |
8.5 |
1.2 |
108.2 |
177 |
610 |
2 |
1.5 |
6 |
13.6/7.8 |
410 |
|
10 |
95 |
172 |
610 |
2 |
1.5 |
6 |
410 |
|||||
|
10 |
1500 |
8.5 |
135.3 |
222 |
610 |
2 |
1.5 |
6 |
430 |
|||
|
10 |
118.7 |
215 |
610 |
2 |
1.5 |
6 |
425 |
|||||
|
NPA-144-R |
8 |
1800 |
8.5 |
1.44 |
129.9 |
213 |
610 |
2 |
1.5 |
6 |
13.6/7.8 |
450 |
|
10 |
114 |
206 |
610 |
2 |
1.5 |
6 |
440 |
|||||
|
10 |
1800 |
8.5 |
162.4 |
266 |
650 |
2 |
1.5 |
6 |
470 |
|||
|
10 |
142.5 |
258 |
650 |
2 |
1.5 |
6 |
460 |
|||||
|
12 |
1800 |
8.5 |
194.7 |
320 |
700 |
2 |
2.2 |
6 |
19/11.2 |
510 |
||
|
10 |
171 |
310 |
700 |
2 |
2.2 |
6 |
500 |
|||||
|
NPA-168-R |
8 |
2100 |
8.5 |
1.68 |
151.5 |
249 |
650 |
2 |
1.5 |
6 |
13.6/7.8 |
490 |
|
10 |
133 |
241 |
650 |
2 |
1.5 |
6 |
480 |
|||||
|
10 |
2100 |
8.5 |
189.4 |
311 |
700 |
3 |
2.2 |
6 |
19/11.2 |
510 |
||
|
10 |
166.2 |
301 |
700 |
3 |
2.2 |
6 |
500 |
|||||
|
12 |
2100 |
8.5 |
227.3 |
373 |
650 |
2 |
1.5 |
6 |
13.6/7.8 |
540 |
||
|
10 |
199.5 |
361 |
650 |
2 |
1.5 |
6 |
530 |
|||||
|
NPA-192-R |
8 |
2400 |
8.5 |
1.92 |
173.2 |
284 |
700 |
3 |
2.2 |
6 |
19/11.2 |
510 |
|
10 |
152 |
275 |
700 |
3 |
2.2 |
6 |
500 |
|||||
|
10 |
2400 |
8.5 |
216.5 |
355 |
650 |
3 |
1.5 |
6 |
13.6/7.8 |
610 |
||
|
10 |
190 |
344 |
650 |
3 |
1.5 |
6 |
600 |
|||||
|
12 |
2400 |
8.5 |
259.8 |
426 |
700 |
3 |
2.2 |
6 |
19/11.2 |
660 |
||
|
10 |
228 |
413 |
700 |
3 |
2.2 |
6 |
650 |
|||||
| NPA-216-R |
8 |
2700 |
8.5 |
2.16 |
194.85 |
320 |
610 |
3 |
1.5 |
6 |
13.6/7.8 |
620 |
|
10 |
171 |
310 |
610 |
3 |
1.5 |
6 |
610 |
|||||
|
10 |
2700 |
8.5 |
243.56 |
400 |
650 |
3 |
1.5 |
6 |
670 |
|||
|
10 |
213.75 |
387 |
650 |
3 |
1.5 |
6 |
660 |
|||||
|
12 |
2700 |
8.5 |
292.27 |
480 |
700 |
3 |
2.2 |
6 |
19/11.2 |
720 |
||
|
10 |
256.5 |
465 |
700 |
3 |
2.2 |
6 |
700 |
|||||
| NPA-240-R |
10 |
3000 |
8.5 |
2.4 |
270.6 |
444 |
650 |
3 |
1.5 |
6 |
13.6/7.8 |
700 |
|
10 |
237.5 |
430 |
650 |
3 |
1.5 |
6 |
870 |
|||||
|
12 |
3000 |
8.5 |
324.7 |
533 |
750 |
3 |
2.2 |
6 |
19/11.2 |
750 |
||
|
10 |
285 |
517 |
750 |
3 |
2.2 |
6 |
730 |
|||||
|
NPA-264-R |
8 |
3300 |
8.5 |
2.64 |
238.15 |
391.3 |
650 |
3 |
1.5 |
6 |
13.6/7.8 |
690 |
|
10 |
209 |
379.1 |
650 |
3 |
1.5 |
6 |
680 |
|||||
|
10 |
3300 |
8.5 |
297.69 |
489.1 |
700 |
3 |
2.2 |
6 |
19/11.2 |
750 |
||
|
10 |
261.25 |
473.9 |
700 |
3 |
2.2 |
6 |
740 |
|||||
|
12 |
3300 |
8.5 |
357.22 |
586.9 |
650 |
4 |
1.5 |
6 |
13.6/7.8 |
860 |
||
|
10 |
313.51 |
568.7 |
650 |
4 |
1.5 |
6 |
850 |
|||||
|
NPA-288-R |
8 |
3600 |
8.5 |
2.88 |
259.8 |
426.9 |
700 |
3 |
2.2 |
6 |
19/11.2 |
730 |
|
10 |
228 |
413.6 |
700 |
3 |
2.2 |
6 |
720 |
|||||
|
10 |
3600 |
8.5 |
324.75 |
533.6 |
700 |
3 |
2.2 |
6 |
790 |
|||
|
10 |
285 |
517 |
700 |
3 |
2.2 |
6 |
770 |
|||||
|
12 |
3600 |
8.5 |
389.7 |
640.3 |
650 |
4 |
2.2 |
6 |
900 |
|||
|
10 |
342.01 |
620.4 |
650 |
4 |
2.2 |
6 |
880 |
|||||
* 제품사양은 제품개발로 인하여 사전예고 없이 변경될 수 있습니다.
