This product is manufactured by
KyungDong R&H
Manufacturer information
KyungDong R&H
Unit cooler, Air cooling condenser, Cooling coil, Condenser and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
KyungDong R&H
Product Type
Machine
Brand
-
SKU
54528
Product Name
-
Model Name
IV-Series
Size
-
Weight
-
Product Details

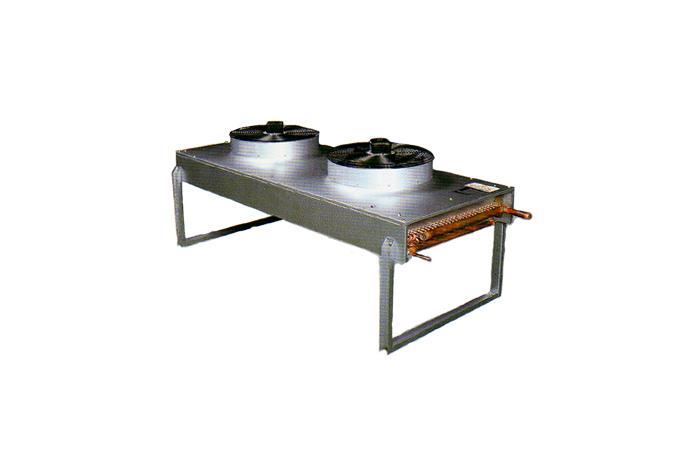

Air Cooled Condenser IV-Type
- Low noise level by external rotor motor.
- Improved efficiency with longer air guide.
- I and V type both are available.
- High quality & reliable operation.
- Long life & easy maintenance.
■ EXTERNAL ROTOR MOTOR
<특징>
1.저소음화 (40-50dB이하)
2.경량화(Motor 소형화)
3.소요 동력감소
4.효율증대
5.Motor수명연장
(Motor 등급향상-IP54)
6.인버터 적용가능 MOTOR
■ CONDENSER IV-TYPE SPECIFICATION
| ＼SPEC MODEL |
capacity (KCAL/M) |
FAN DIA(mm) | MOTOR | AIR VOLUME | EXTERNAL SIZE (Width*Height*Length) |
CONNECTION DIA | HEAT TRANSFER AREA(m) | |
| IN | OUT | |||||||
| KAC-IV 11 | 9,918 | 500 * 1EA | 0.2kw*8P*1EA | 43 | 800*920*1070 | 3/8" | 1" | 34.1 |
| KAC-IV 13 | 11,397 | 500 * 1EA | 0.2kw*8P*1EA | 46 | 800*950*1070 | 3/8" | 1" | 45.5 |
| KAC-IV 23 | 19,836 | 500 * 2EA | 0.2kw*8P*2EA | 106 | 800*920*1930 | 1/2" | 1 1/2" | 68.2 |
| KAC-IV 26 | 22,794 | 500 * 2EA | 0.2kw*8P*2EA | 113 | 800*950*1930 | 5/8" | 1 1/2" | 90.9 |
| KAC-IV 34 | 29,754 | 500 * 3EA | 0.2kw*8P*3EA | 160 | 800*920*2790 | 5/8" | 1 1/2" | 102.2 |
| KAC-IV 46 | 39,670 | 500 * 4EA | 0.2kw*8P*3EA | 170 | 800*950*2790 | 3/4" | 1 1/2" | 136.3 |
| KAC-IV 53 | 45,588 | 500 * 4EA | 0.2kw*8P*4EA | 226 | 1550*950*1930 | 3/4" | 2" | 181.7 |
| KAC-IV 69 | 59,508 | 500 * 6EA | 0.2kw*8P*6EA | 320 | 1550*920*2790 | 3/4" | 2" | 204.4 |
| KAC-IV 79 | 68,392 | 500 * 6EA | 0.2kw*8P*6EA | 340 | 1550*950*2790 | 7/8" | 2" | 272.5 |
