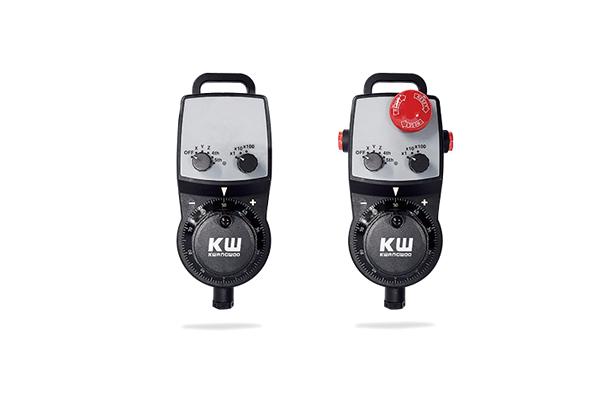

Manual Pulse Generator (Optical type)
Model Name
KSPM Series
Series
Encoder sensor (Industrial parts)
Data
-
Manufacturer information
provider logo
KWANGWOORotary encoder, Optical sensor, Light source device, Light guide manufacturer
Problem with product info?
Update request
Manufacturer
KWANGWOO
Brand
-
SKU
129179
Product Name
Manual Pulse Generator (Optical type)
Model Name
KSPM Series
Size
-
Weight
-
Product Details

KSPM Series

- NC tooling machine

- Industrial application

- High reliability

- Customized logo can be available

- Half permanent durability




Features


NC machine tools, industrial


Realization of high reliability


Custom logo can be attached


Half permanent durability





Model






External Dimension






Output circuit




Line Driver





Specification


Electrical Spec

Output typeLine Driver
Power SupplyDC +5[v]
Consuming Current
(In case of no load)
50mA Max
Maximum Response
Frequency
5KHz MAX
Output voltageLess than VL 0.5[V]/More than VH 2.5[V]
Output currentLess than 20mAMultipulationX1, X10, X100 (Rotary Switch)
Rising, decline timeLess than 0.1㎲S/W FunctionEmergencyS/W
AxisX, Y, ZEnable S/W





Mechanical Spec

Starting Torque300gf – cm Max
Maximum number of revolution600 rpm
Bearing lifetime50,000[hr]
Terminal Block5268-6(Molex)
MagnetWith / Without
MaterialABS





Output Phase Shift


Line Driver





Rigid Spec

Operating Temp. Range-10ºC ~ +70ºC
Preserving temp-20ºC ~ +85ºC
Using humidity35% ~ +80% RH
Preserving Humidity30% ~ +85% RH
Internal Vibratio5G
Internal Shock50G
Degree of ProtectionIP 50






Connection Table

NoCable’s ColorSignalRelativeNoCable’s ColorSignalRelative
1BrownVccMPG11WhiteMP2Rotary Switch
(X1, X10, X100)
2Blue0V12BlackMP4
3GreenA13PurpleCOMEnable, Axis
4Beige


14Light RedRS1EMG S/W
5OrengeB15Light BrownRS2
6Colorless/Black


16PinkAX1Axis
(X, Y, Z)
7Light Green lightingL+LED Display17BlueAX2
8Light BlueL-18Light GreenAX4
9Light YellowCOMEMG S/W19Light PurpleEN1Enable SW
10GrayMP1Rotary Switch
(X1, X10, X100)
20ColorlessEN2
< Standard+ EMG + ENA type >
