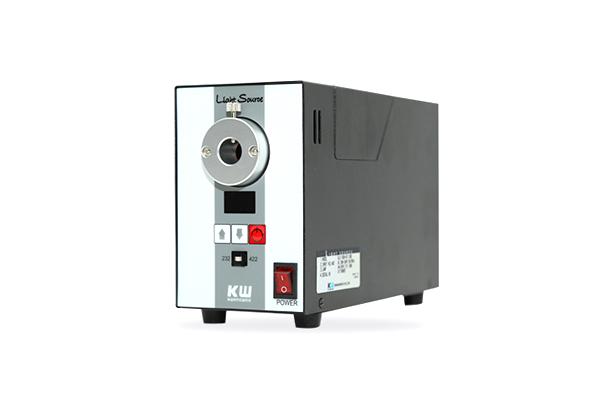

150W Halogen Light Source
Display function
- Simultaneous control of up to 29 units
- Lamp illumination setting function
Features
Model

Outer Dimension

Specification
| Model | Kls-150H-RC-15E | |
|---|---|---|
| Size | 135[mm]Hx88[mm]Wx212[MM]L | |
| Weight | 2kg | |
| Consumption power | 175 [Watts] Max | |
| Input voltage | 220[v], 50/60[Hz] ±10% | |
| Protection input side | 250V/5A [Ø5X20] | |
| Fan type | 80X25, DC12V 0.30A | |
| Operating temp | 0℃ to 40℃ | |
| Storage temp | -20℃ to 60℃ | |
| Humidity | 95% Max, No water, liquid or heavy dust inside the illuminator. | |
| Communication method | RS232 / RS422 [29 Address] | |
Lamp spec
| Model | EKE 21V 150W |
|---|---|
| Type | Tungsten halogen lamp with reflector |
| Consumption power | 150[Watts] |
| Life time | 200 Hours average |
| Lamp voltage | 21 [Volt] |
| CRI | 3,350[K] |
