Manufacturer
KWANGWOO
Product Type
Machine
Brand
-
SKU
129182
Product Name
Magnetic
Model Name
KGM Series
Size
-
Weight
-
Product Details

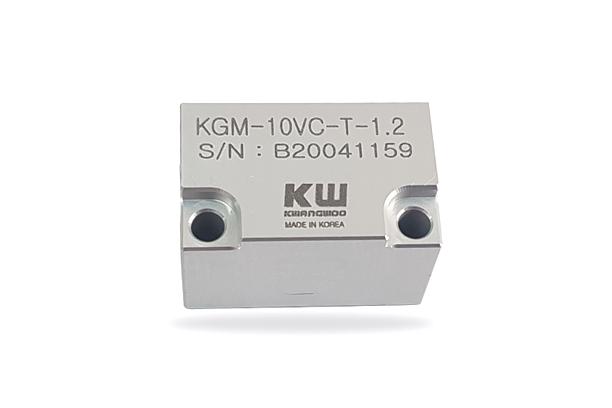

KGM Series
MAGNETIC TYPE
- Small & Compact size
- Convenient installation
- High frequency (up to 200Khz)
- IP68
- CNC machine , Measuring instrument
Features
Small & Compact size |
Convenient installation |
High frequency (up to 200Khz) |
IP68 |
CNC machine, Measuring instrument |
Model
External Dimension
Specification
Electrical Spec
| Output type | Sine/Cosine |
|---|---|
| Supply Voltage | DC+5[V] Ripplep-p:less than 5% |
| Current Consumption (Without load ) | 50mA Max |
| Maximum Response Frequency | 200kHz |
| Output level | 1 Vpp Differential signal |
| Output current | Less than 50mA |
| Electromagnetic emissions | KS C IEC 61000-6-2 |
| Electromagnetic immunity | KS C IEC 61000-6-4 |
| Dielectricstrength | KS C IEC 61439-1(500 V AC) |
Output Signal
| Output | Sine/Cosine |
|---|---|
| Signal | A : 1Vpp Sine signal /A : 1Vpp-Sine signal B : 1Vpp Cosine signal /B : 1Vpp-Cosine signal Z : Digital Pulse signal(+) /Z : Digital Pulse signal(-) → Signal in CW A & B 90°phase, Sinal in CCW A & B -90° phase → According to Gear Wheel Reference Mark, Digital differential pulse signal. Gear Wheel module: M1.0 |
Rigid Spec
| Operating Temp. Range | -10°C~ +70°C (No freezing) |
|---|---|
| Storagetemp | -30ºC ~ +120ºC |
| Protectionclass | IP68(KSCIEC60529) |
| InternalVibratio | 10~55Hz/2mm (X,Y 20Cycle / Z 50 Cycle) |
| InternalShock | 50G |
| weight | 100G |
Cable Spec
| Cable Length | 1.2M/2.1M |
|---|---|
| Cable output | Φ5 |
| Connector spec | JN1HS10PL |
| Insulation spec | 3P(AWG28)Shield CABLE |
| Cable meterial | Special TPU(Max.121℃) |
| Certificationstandard | AWM20936 |
Output Phase Shift
Connection Table
| Connector | pin | Output Signal | Relative |
|---|---|---|---|
| 1 | B+,Consine+ |
|
| 2 | B-,Consine- |
| |
| 3 | Shield | ||
| 4 | Vcc,+5V | ||
| 5 | A+,Sine+ |
| |
| 6 | A-,Sine- |
| |
| 7 | OV,GND | ||
| 8 | Z+,Reference Pulse+ |
| |
| 9 | Z-,Reference Pulse- |
| |
| 10 | Non | ||
