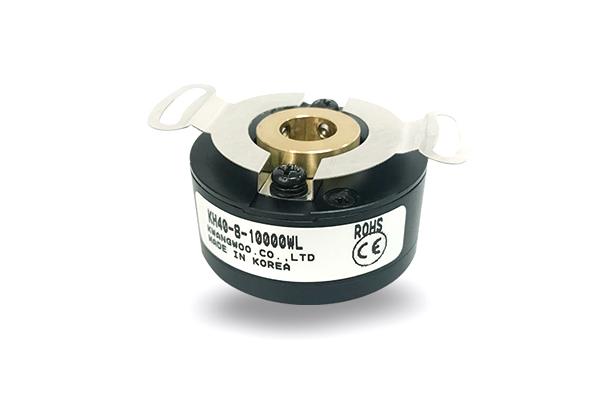

KHB40 Series
Out Diameter Ø40mm Hollow type INCREMENTAL

Ultra-thin Height (Ø22mm)
Servo output (UVW)
High Resolutions
Servo system, Closed loop
Automation line
Various pulses and poles



Features


Ultra-thin Height (Ø22mm)


Servo output (UVW)


High Resolutions


Servo system


Stepping system


Automation line


Various pulses and poles






Model




External Dimension






Output Circuit

Open Collector

voltage Output

Totem po;e

Line Driver





Specification


Electrical Spec

Output typeOpen CollectorVoltage OutputTotem PoleLine Driver
Power SupplyVL = Less than 0.5V / VH = More than 2.7V(DC+5V)
More than 9V(DC+12V), More than 20V (DC+24V)
VL= Less than 0.5V
VH=More than 2.7V(DC+5V)
Consuming Current
(In case of no load)
170mA Max. (In case of no load)
Maximum Response Frequency500 KHz Max.
Output voltageVL Less than 0.5[V] / VH More than 2.5[V]
Output currentLess than 20mA
Rising, decline time3㎲Less than 0.1㎲
Common conditionsIn case that the cable length of output side is 1[M] and load resistance is less than 1[kΩ]




Mechanical Spec

Starting Torque80gf – cm
Maximum number of revolution8,000 rpm
Allowable Shaft LoadRadial: 2.5kgMax
Axial: 1.3kgMax
CableФ5.5,2C6P(AWG28)Shield CABLE
weight100g




Output Phase Shift





CW → Clockwise viewed from shaft end

a + b, c + d = T/2 ± T/10

a , b , c , d = T/4 ± T/10










Open Collector, Voltage Output, Totem Pole



Line Driver





Rigid Spec

Operating Temp. Range-20ºC ~ +100ºC (No freezing)
Preserving temp-40ºC ~ +125ºC
Using humidity35% ~ +80% RH
Preserving Humidity30% ~ +85% RH
Internal Vibratio5G
Internal Shock50G
Degree of ProtectionIP 50



Connection Table

Cable’s ColorOutput Signal
Output FormOpen Collector
Voltage Output
Totem Pole
Line Driver
RedVccVcc
BlackGNDGND
GreenAA
Green/Black


WhiteBB
White/Black


YellowZZ
Yellow/Black


OrangeU
Orange/Black


Pink


Pink/Black


GrayW
Gray/Black
